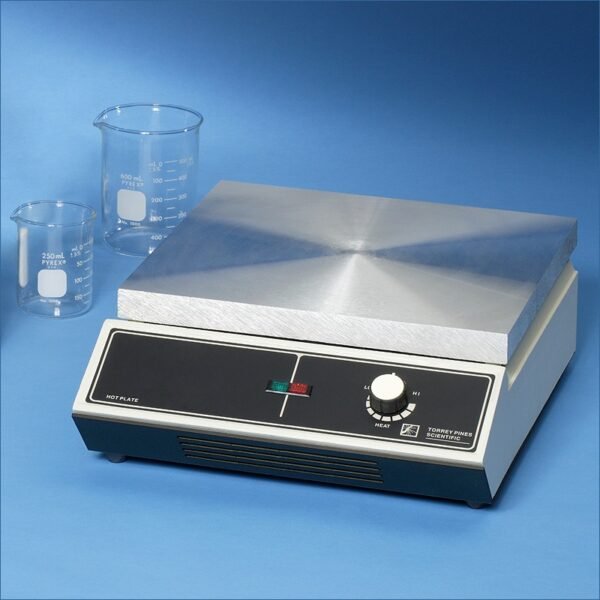

Hot Plate 12″ x 12″ Aluminum Top 230VAC
| Catalog Number | Description | Voltage |
| Analog Hot Plate Ceramic Top | 115VAC | |
| Analog Hot Plate Ceramic Top | 230VAC | |
| Analog Hot Plate Aluminum Top | 115VAC | |
| H3505-HP11A-2 * | Analog Hot Plate Aluminum Top | 230VAC |
Heat on a rugged, quick heating, flat, white, solid ceramic heater surface. • Heat to 450°C on plate surface in minutes • Plate size on the HS10, HP10 and ST10 is: 8″ (20.32cm) x 8″ (20.32cm) • Plate size on the HS1, HP1 and ST1 is 6″(15.24cm) x 6″ (15.24cm) • Plate size on HS11, HP11 and ST11 is 12″(30.48cm) x 12″(30.48cm) • Solid ceramic heater surface for excellent chemical resistance • Milled-flat cast aluminum tops for even heating in 6″ x 6″ and 12″ x 12″ models • Heater plate mounted in cast aluminum frame that remains cool for safety • Efficient 600-watt heaters on the HS10 and HP10 • Efficient 400-watt heaters on the HS1 and HP1 • Powerful 1400 watt heaters on ceramic-topped HS11 and HP11 and 1200 watt heaters on HS11A and HP11A • Fused for safety • Rugged cast aluminum chassis • 12-month warranty • UL, CSA, and CE certified
The stirrer features a solid state control capable of stirring an aqueous solution from 100 to 1500 rpm. The control has an OFF position fully counter-clockwise, and is continuous over 270 degrees of rotation from minimum to maximum speed when turned on. The magnet is a circular disc with twenty pound pull strength and is capable of stirring more than two liters of aqueous solution. The heater control has OFF, LO, and HIGH positions for quick setting, and a smooth infinite control of about 270 degrees between LO and HIGH settings. The control will regulate a set point to ±2.5°C. Control knobs are specially selected to provide easy use and positive, tactile feel. All units are fused, and have a 3-foot long detachable AC line cord with a male plug that matches the local standard. The warranty is 12 months. . |
| Hot Plate: | |
| Solid ceramic | |
| Maximum temperature of the plate surface | Aluminum: 400°C Ceramic: 450°C |
| Time to maximum temperature, unloaded | Aluminum: 10 minutes Ceramic: 3 minutes |
| Temperature control | Aluminum: +/-2.5°C Ceramic: =/-2.5°C |
| Heater power, watts | HS1 & HP1: 400 watts HS10 & HP10: 600 watts HS11 & HP11, Aluminum: 1200 watts HS11 & HP11, Ceramic: 1400 watts |
| Electrical: | |
| Operating voltages available | 100VAC/50Hz, 115VAC/60HZ, 220VAC/60HZ, and 230VAC/50Hz |
| Power consumption | HS10 and HP10: 650 watts HS1 and HP1: 450 watts ST10 and ST1: 100 watts HS11 & HP11: 1450 watts HS11A & HP11A: 1250 watts ST11: 100 watts |
| Current Draw | 100/115VAC Models: 220/230VAC Models: |
| ||||||
