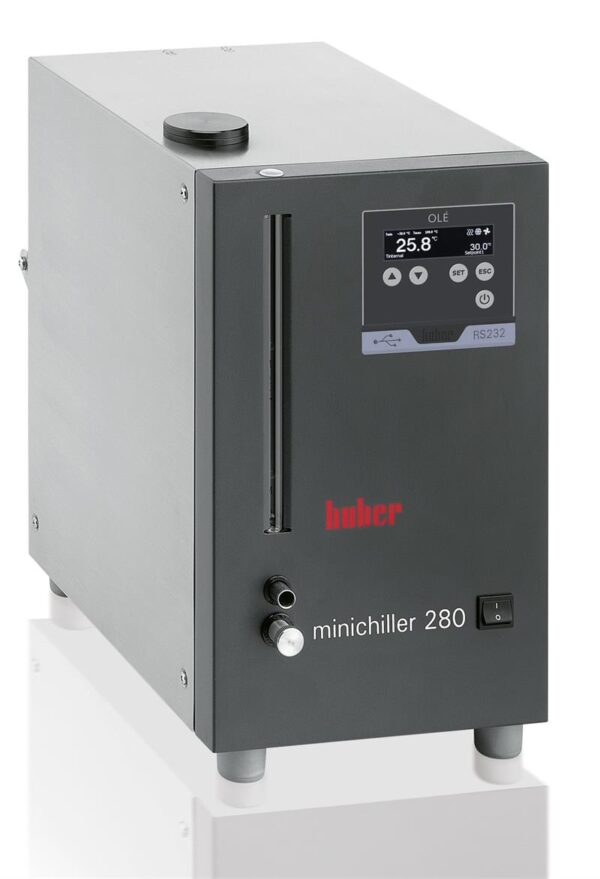

Huber Minichiller 280 OLE 100-120V

Huber Minichiller 280 OLÉ

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.
The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

• Environmentally-friendly, economic cooling solution
• High efficiency
• Precise temperature control
• Simple operation with menu navigation
• Robust stainless construction
• Reliable continuously operation with warning functions
• Easy to fill and empty
• Illuminated filling level indicator
• Bright, large OLED display
• USB and RS232 interfaces
• Natural refrigerant

In accordance with EN60034-1 the following voltage and frequency tolerances are valid:
Voltage + / – 5% with a simultaneous frequency tolerance of + / – 2%
Example -5% voltage and +2% frequency -> not allowed!
-5% voltage and – 2% frequency -> allowed

Information to Electromagnetic compatibility:
Classification (disturbance) to EN55011: Class A, Group 1
Special Case: Acetone and Polyglycol: The plastic pump is not resistant against acetone and polyglycols (depending on the manufacturer). It is recommended that water is mixed with either glysantine or ethylene glycol for freeze protection. A more resistant plastic is available on request at an additional cost.

Standard delivery conditions – Power cable configuration:
1. Single / two-phase devices (100V to 240V) –> with power cable and country-specific plug (please specify when ordering)
2. Three-phase devices with current consumption less than 63A –> with cable, without plug
3. Three-phase devices with current consumption greater than 63A –> without cable, without plug

This equipment is compliant to US-SNAP and all applicable EU laws. The US-SNAP end-use for this equipment is the industrial process refrigeration. Certification by a Notified Body upon request.
