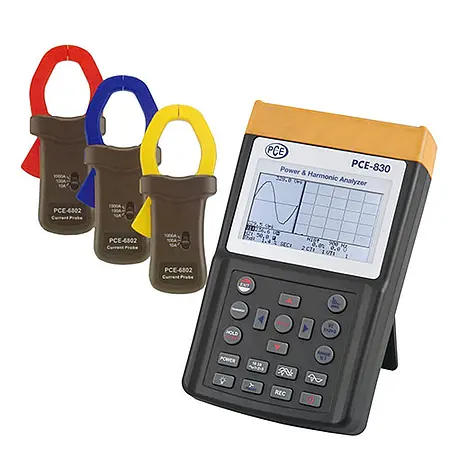

HVAC Meter PCE-830-2

PCE-830-2 HVAC Meter adalah alat ukur canggih yang dirancang untuk mengukur dan menganalisis parameter listrik pada sistem AC satu hingga tiga fase. Alat ini mampu mengukur tegangan, arus, frekuensi, harmonik, dan daya dengan akurasi tinggi, sekaligus memantau gangguan seperti interupsi, kebocoran, atau transien sesuai standar EN50160. Dengan layar LCD backlit beresolusi tinggi, pengguna dapat memantau hingga 35 parameter secara bersamaan, memudahkan analisis data secara real-time. PCE-830-2 juga dilengkapi dengan tiga clamp meter yang dapat dipasang sekaligus, menjadikannya solusi ideal untuk aplikasi industri yang membutuhkan pengukuran multi-saluran.

Prinsip kerja PCE-830-2 didasarkan pada pengukuran langsung parameter listrik menggunakan sensor internal dan clamp meter eksternal yang presisi. Alat ini dapat mendeteksi harmonik, interharmonik, dan ketidakseimbangan fase, serta menyimpan data dalam memori internal hingga 17.470 pembacaan untuk sistem tiga fase atau 52.400 pembacaan untuk sistem satu fase. Data yang terekam dapat ditransfer ke komputer melalui antarmuka USB dan dianalisis lebih lanjut menggunakan perangkat lunak bawaan. Kemampuan logging data yang panjang membuatnya cocok untuk pemantauan jangka panjang di lingkungan industri manufaktur atau fasilitas komersial.

Aplikasi utama PCE-830-2 mencakup pemeliharaan sistem HVAC, audit energi, dan pengawasan kualitas daya di berbagai industri. Alat ini sangat berguna untuk teknisi dan engineer yang membutuhkan alat portabel dengan fitur lengkap namun mudah digunakan. Dengan kalibrasi standar dari pabrikan dan opsi sertifikasi ISO tambahan, PCE-830-2 menjamin keandalan pengukuran sesuai kebutuhan regulasi teknis. Selain itu, desainnya yang ergonomis dan dilengkapi casing pelindung memastikan ketahanan di lapangan.

PCE-830-2 datang dengan paket lengkap termasuk clamp meter, kabel pengaman, adaptor, dan baterai, sehingga siap digunakan segera setelah dibuka. Perangkat lunak analisis yang disertakan memungkinkan pengolahan data lebih mendalam, seperti pembuatan grafik tren atau laporan teknis. Kombinasi antara portabilitas dan kapabilitas ini menjadikannya pilihan tepat untuk aplikasi di lapangan maupun laboratorium. Dengan dukungan kalibrasi berkala, alat ini dapat mempertahankan performa optimal dalam jangka panjang.

Secara keseluruhan, PCE-830-2 HVAC Meter adalah solusi komprehensif untuk pengukuran dan analisis sistem listrik tiga fase. Akurasinya yang tinggi, antarmuka yang intuitif, dan fitur logging data yang canggih memenuhi kebutuhan industri manufaktur, utilitas, maupun kontraktor elektrikal. Dengan dukungan perangkat lunak dan aksesori lengkap, alat ini tidak hanya memudahkan pengukuran tetapi juga meningkatkan efisiensi diagnostik sistem kelistrikan. PCE-830-2 merupakan investasi berharga bagi profesional yang mengutamakan presisi dan keandalan dalam pekerjaan mereka. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors – Measures effective real value (V 123 and I 123) – Measures active power (W, KW, MW, GW) – Measures apparent and reactive power (KVA, KVAR) – Power Factor (PF), phase angle (Φ) – Measures energy and work (Wh, KWh, KVARh, PFh) – Measures current from 0.1 mA to 3000 A, allowing for the reserve power of a factory to be determined – Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors]) – CT conditions (1 to 600) and PT (1 to 3000) are programmable – Indicates current wave forms and voltage overlap. – 512 KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings using the system of 3 phases / 4 conductors – Indicates wave forms, efficiency parameters, and harmonic distortion – Backlit LCD with dot matrix – Average power (AD in W, KW, MW) – Maximum power (MD in W, KW, MW) with the programmable period – Analysis of harmonic distortion up to a curvature of 99 – Indication of up to 50º form of harmonic wave – Indication of the wave form with maximum value (1024 readings / period) – Analysis of absolute distortion (%THD-F) – Diagram of graphic equilibrium with parameters of a 3 phase system – Detects up to 28 transistors (time and cycles) with a programmable threshold (%) – Relation of 3 phases of voltage or asymmetrical current (VUR) – Factor of 3 phases of voltage and asymmetrical current (d0%, d2%) – USB port (optically insulated) – Integrated timer and calendar to record data – Maximum diameter of the electrical conductor for the amp clamp: the PCE-6801 ~30 mm / 1.2 in, PCE-6802 ~55 mm / 2.2 in, PCE-3007 ~170 mm / 6.7 in

Technical Specifications
Measurement values	Measurement ranges / resolution / accuracy
PCE-830 + PCE-6801 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W 1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W 10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W 100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW 1,000 kW to 9,999 kW / 1 kW / ±1% ±8 kW
PCE-830 + PCE-6802 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W 1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W 10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W 100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW 1000 kW to 9999 kW / 1 kW / ±1% ±8 kW 0.000 MW to 9.999 MW / 0.001 MW / ±1% ±80 kW
PCE-830 + PCE-3007 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	10.0 W to 999.9 W / 0.1 W / ±1% of measurement range 1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range 10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range 100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range 1,000 kW to 9,999 kW / 1 kW / ±1% of measurement range
PCE-830 + PCE-6801 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	0.04 A to 1 A / 0.001 A / ±0.5% ±0.05 A 0.4 A to 10.0 A / 0.01 A / ±0.5% ±0.05 A 4 A to 100.0 A / 0.1 A / ±1.0% ±0.5 A
PCE-830 + PCE-6802 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	10.00 A / 0.01 A / 4 A to 100.0 A / 0.01 A / ±0.5% ±0.5 A 40 A to 1000.0 A / 0.1 A / ±0.5% ±5 A
PCE-830 + PCE-3007 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	0 to 300 A / 0.1 A / ±1.0% of measurement range 300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range 1,000 A to 3,000 A / 1 A / ±1.0% of measurement range
Voltage AC (50 Hz or 60 Hz, TRMS)	20.0 V … 500.0 V / 0.1 V / ±0.5 % ±5 digits (grounded) 20.0 V … 600.0 V / 0.1 V / ±0.5 % ±5 digits (phase to phase)
Harmonic distortionof AC voltage	1º to 20º / 0.1% / ±1.0% 21º to 49º / 0.1% / 4% of reading ±2.0% 50º to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-6801 Harmonics of AC current in %	1º to 20º / 0.1% / ±0.2% of reading ±1.0% 11º to 20º / 0.1% / ±2% of reading ±1.0% 21º to 50º (A)/ 0.1% / ±5% of reading ±1.0% 21º to 50º (mA)/ 0.1% / ±10% of reading ±1.0% 51º to 99º / 0.1% / ±35% of reading ±1.0%
PCE-830 + PCE-6802 Harmonics of AC current in %	1º to 10º / 0.1% / ±2% 21º to 49º / 0.1% / 4% of reading ±2.0% 50º to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-3007 Harmonics of AC current in %	1º to 10º / 0.1% / ±2% 21º to 49º / 0.1% / ±6% 50º to 99º / 0.1% / ±10%
PCE-830 + PCE-6801 / PCE-830 + PCE-6802 Power Factor (PF)	0.00 to 1.00 / 0.01 / ±0.04
PCE-830 + PCE-3007 Power Factor (PF)	0.000 to 1,000 / 0.001 / ±0.04
PCE-830 + PCE-6801 / PCE-830 + PCE-6802 Phase angle (Phi)	-180° to 180° / 0.1° / ±1°
PCE-830 + PCE-3007 Phase angle (Phi)	0° to 180° / 0.1° / ±2°
PCE-830 + PCE-6801 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±1% 20.0% to 100% / 0.1% / ±3% of reading ±5% 100% to 999.9% / 0.1% / ±10% of reading ±10%
PCE-830 + PCE-6802 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±2% 20.0% to 100% / 0.1% / ±6% of reading ±1% 100% to 999.9% / 0.1% / ±10% of reading ±1%
PCE-830 + PCE-3007 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±2% 20.0% to 100% / 0.1% / ±6% of reading ±1% 100% to 999.9% / 0.1% / ±10% of reading ±1%
Maximum measurement of AC voltage and current	50 Hz / 19 µS / ±5% ±30 digits 60 Hz / 16 µS / ±5% ±30 digits
Peak value measurement of AC voltage and current	1.00 to 99.99 / 0.01 / ±5% ±30 digits
Frequency range in automatic mode	45 Hz to 65 Hz / 0.1 H z / 0.1 Hz
Memory	512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors
Port	USB
Software and cable	included, for Windows 2000, XP, ME
Display	backlit LCD with dot matrix
Power	8 AA batteries (Mignon)
Dimensions	257 mm x 155 mm x 57 mm10.1 in x 6.10 in x 2.24 in
Weight	1.16 kg / 2.56 lbs
Operating conditions	max. 85% relative humidity-10º C to 50º C / 14º F to 122º F
Type of protection / standards	IEC 61010, 600 V/CAT III
Set 1: PCE-830 + PCE-6801 amp clamp (100 A) – Electrical conductor pick-up: 30 mm / 1.2 in diameter – Range selection: manual (1 A, 10 A, 100 A) – Dimensions: 210 mm x 62 mm x 36 mm / 8.2 in x 2.4 in x 1.4 in – Weight: 200 g / 7 oz
Set 2: PCE-830 + PCE-6802 amp clamp (1000 A) – Electrical conductor pick-up: 55 mm / 2.2 in diameter – Range selection: manual (10 A, 100 A, 1,000 A) – Dimensions: 244 mm x 97 mm x 46 mm / 8.6 in x 97 in x 46 in – Weight: 600 g / 1.3 lbs
Set 3: PCE-830 + PCE-3007 flexible amp clamp (3000 A)- Electrical conductor pick-up: 170 mm / 6.69 in diameter – Minimum radial curve : 35 mm / 1.4 in – Length of electrical conductor: 610 mm / 24.0 in – Diameter of electrical conductor: 14 mm / 0.55 in – Dimensions (Box): 130 mm x 80 mm x 43 mm / 5.1 in x 3.1 in x 1.6 in – Weight: 410 g / 14.4 oz
Outline of the PCE-830
Connecting the amp clamps to the PCE-830: 1. Turn on the device. 2. Push the “1f3f” key until “3P3W” appears on the display for 3 phases / 3 conductors. 3. Connect the 3 test cables from the voltage with L1, L2, L3 and the analyser. The amp clamps are connected, as seen in the image to the right, between the device and the circuit. 4. The results can then be seen on the display.

1 x PCE-830-2 HVAC Meter 3 x Amp clamps – Depending on set ordered (PCE-6801, PCE-6802, or PCE-3007) 4 x Alligator clips 4 x Safety test lines (3 m / 3.3 ft long), 8 x Batteries 1 x Mains adaptor 1 x Carrying case 1 x USB cable software 1 x User’s manual
