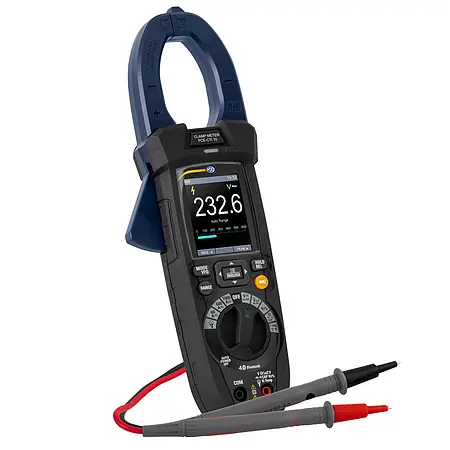

HVAC Meter PCE-CTI 10

HVAC meter dengan antarmuka Bluetooth 4.0 ini adalah alat ukur serbaguna yang dirancang untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC. Prinsip kerjanya memanfaatkan pengukuran induktif melalui clamp meter, memungkinkan pengukuran arus tanpa memutus sirkuit, sehingga ideal untuk pemeliharaan sistem seperti photovoltaic. Dengan akurasi tinggi dan kemampuan pengukuran inrush current, alat ini sangat berguna untuk menentukan dimensi kabel dan pengaman pada peralatan seperti motor ventilasi atau pencahayaan stadion.

Alat ini juga dilengkapi fungsi VFD untuk mengukur frekuensi converter dalam rentang 45 Hz hingga 1 kHz, memastikan kompatibilitas dengan berbagai perangkat industri. Antarmuka Bluetooth 4.0 memungkinkan koneksi ke perangkat Android dan iOS melalui aplikasi “Meterbox Pro”, memudahkan pengguna dalam mencatat dan menganalisis data. Fitur data logging dapat menyimpan hingga 100.000 nilai pengukuran beserta waktu dan tanggal, memungkinkan pelacakan kinerja sistem secara berkala.

HVAC meter ini dapat diperluas dengan clamp arus fleksibel opsional yang meningkatkan kapasitas pengukuran hingga 3000 A AC. Clamp tambahan ini terhubung ke input tegangan dan mengkonversi nilai tegangan menjadi arus yang terbaca di layar. Fleksibilitas ini membuatnya cocok untuk aplikasi di industri manufaktur, pembangkit listrik tenaga surya, hidroelektrik, atau turbin angin.

Dengan kalibrasi standar ISO opsional, alat ini menjamin keandalan pengukuran untuk kebutuhan inspeksi dan pemeliharaan. Kemudahan penggunaan ditunjang oleh desain ergonomis dan paket lengkap termasuk termokopel Type-K, kabel pengukur, dan casing pelindung. Baterai isi ulang dan stasiun pengisiannya memastikan alat siap digunakan kapan saja.

Produk ini menjadi solusi ideal bagi teknisi dan engineer yang membutuhkan alat ukur multifungsi dengan akurasi tinggi dan fitur canggih. Aplikasinya mencakup berbagai sektor, mulai dari energi terbarukan hingga industri manufaktur berat. Kombinasi portabilitas, kemampuan ekspansi, dan dukungan teknologi Bluetooth menjadikannya investasi berharga untuk pengukuran presisi di lapangan. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Free app for Android and iOS- Measuring range 0 … 1500 V AC/DC- Data logging for up to 100,000 measured values- Inrush current measurement- Additionally with LowZ voltage measurement- 2.36″ TFT display- With voltage and temperature measurement- Optionally with calibration certificate

DC voltage
Measuring range	±600.0 mV
Resolution	0.1 mV
Accuracy	±(0.8 % of measured value + 8 digits)
Measuring range	±6.000 V
Resolution	0.001 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	±60.00 V
Resolution	0.01 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	± 600.0 V
Resolution	0.1 V
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	±1500 V
Resolution	1 V
Accuracy	±(0.8 % of measured value + 5 digits)

Input impedance: >10 MΩ; Overvoltage protection: 1500 VDC / 1000 VAC rms

AC voltage
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1500 V
Resolution	1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)

The accuracy relates to 10 … 100% of the respective measuring range and a sine wave input impedance: >9 MΩ; Overvoltage protection: 1000 V DC/AC RMSThe accuracy of the “PEAK” function is: ±10 % of measured valueThe response time of the “PEAK” function is: 1 ms

AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.0 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMSThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

DC and AC voltage (50 … 1 kHz)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0 … 1000 V
Resolution	1 V
Accuracy	±(2.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

DC and AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

Non-Contacting Voltage Verification (NCV)
Detection range	100 … 1000 AC/DC
Direct current
Measuring range	±60.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±600.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±1000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Overload protection: 1000 A AC/DC

Alternating current (50 … 60 Hz)
Measuring range	0.00 … 60.00 A
Resolution	0.01 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 A
Resolution	0.1 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1000 A
Resolution	1 A
Accuracy	±(2.5 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100 % of the respective measuring range and a sine waveThe inrush current measurement is for reference only

AC current measurement with flexible clamp meter (50 … 400 Hz)
Measuring range	0.00 … 30.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0.0 … 300.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0 … 3000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

Resistance and continuity measurement
Measuring range	0.0 … 600.0 Ω
Resolution	0.1 Ω
Accuracy	±(1.0 % of measured value + 10 digits)
Measuring range	0.000 … 6.000 kΩ
Resolution	0.001 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kΩ
Resolution	0.01 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kΩ
Resolution	0.1 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MΩ
Resolution	0.001 MΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 MΩ
Resolution	0.01 MΩ
Accuracy	±(2.5 % of measured value + 10 digits)

Continuity test acoustic signal at: <50 Ω Overvoltage protection: 1000 V AC/DC

Frequency measurement
Measuring range	0.00 … 60.00 Hz
Resolution	0.01 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 Hz
Resolution	0.1 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 kHz
Resolution	0.001 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kHz
Resolution	0.01 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kHz
Resolution	0.1 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MHz
Resolution	0.001 MHz
Accuracy	±(0.2 % of measured value + 5 digits)

Overvoltage protection: 1000 V AC/DC Sensitivity: >2 Vrms with a duty cycle between 20 … 80 % and a frequency of <100 kHz>5 Vrms with a duty cycle between 20 … 80 % and a frequency of >100 kHz

Duty cycle
Measuring range	10.0 … 90.0 %
Resolution	0.1 %
Accuracy	±(1.2 % of measured value + 8 digits)

Frequency range: 40 … 10 kHz; Pulse amplitude±5 V with a duration between 100 µs … 100 mS

Capacity
Measuring range	0.00 … 60.00 nF
Resolution	0.01 nF
Accuracy	±(3.0 % of measured value + 20 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.000 … 6.000 µF
Resolution	0.001 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.00 … 60.00 µF
Resolution	0.01 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0 … 6000 µF
Resolution	1 µF
Accuracy	±(3.5 % of measured value + 20 digits)
Measuring range	0.00 … 60.00 mF
Resolution	0.01 mF
Accuracy	for reference only
Measuring range	0.0 … 600.0 mF
Resolution	0.1 mF
Accuracy	for reference only

Overvoltage protection: 1000 A AC/DC

Temperature measurement thermocouple Type K (connection)
Measuring range	-40.0 … 600.0 °C
Resolution	0.1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	600 … 1000 °C
Resolution	1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	-40.0 … 600.0 °F
Resolution	0.1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	600 … 1800 °F
Resolution	1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	245.0 … 600.0 K
Resolution	0.1 K
Accuracy	±(1.5 % of measured value + 3 K)
Measuring range	600 … 1273 K
Resolution	1 K
Accuracy	±(1.5 % of measured value + 3 K)

Overvoltage protection: 1000 A AC/DC

Diode test
Test current	<1.5 mA
Maximum voltage	3.3 VDC

Further specifications
Storage space	16 groups with a total storage space
	of 100,000 measured values
Clamp diameter horizontal	38 mm / 1.49″
Clamp diameter vertical	63 mm / 2.48″
Clamp opening	45 mm / 1.77″
Protection class	IP65
Interface	Bluetooth 4.0
Pollution degree	2
Insulation categories	CAT IV 600 V, CAT III 1000 V, CAT II 1500 V
Maximum working height	2000 m / 6562 ft
Power supply battery	7.4 V, 1200 mAh Li-ion battery
Power supply charger	Primary: 100 … 240 V AC, 50 … 60 Hz
	Secondary: 12 V DC, 2 A
Plug connection charger	Europa, USA, England, China
Battery status display	available
Automatic switch-off	switched off, 15, 30 or 60 minutes
Display	2.36″ TFT
Display frequency	3 Hz
Reference conditions	18 … 28 °C, 64 … 82 °F; <80 % RH,
	non-condensing
Dimensions	275 x 100 x 45 mm / 10.8 x 3.9 x 1.7″
Weight	481 g / 16.9 oz

1 x HVAC Meter PCE-CTI 101 x Thermocouple Type-K with adapter1 x Pair of measuring leads 1 x Carrying case1 x Battery charging station1 x Rechargeable battery1 x Instruction manual
