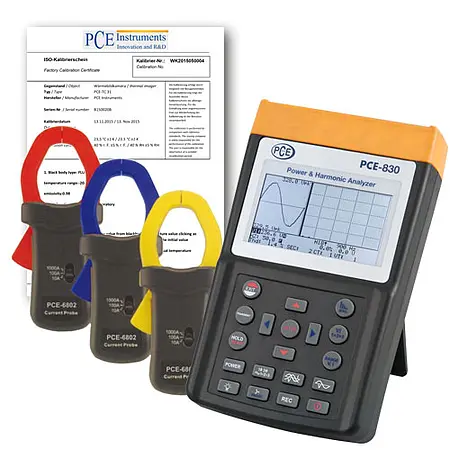

HVACR Tester PCE-830-2-ICA incl. ISO Calibration Certificate

HVACR Tester PCE-830-2 adalah alat ukur canggih yang dirancang untuk memantau dan menganalisis parameter listrik pada sistem AC satu hingga tiga fase. Alat ini mampu mengukur tegangan, arus, frekuensi, daya, serta harmonik dengan akurasi tinggi sesuai standar EN50160. Selain itu, HVACR Tester juga mendeteksi gangguan seperti interupsi, kebocoran, overload, atau transien mulai dari 16µs, menjadikannya solusi komprehensif untuk diagnostik sistem kelistrikan. Dengan layar LCD backlit beresolusi tinggi, pengguna dapat memantau hingga 35 parameter sekaligus secara real-time.

Prinsip kerja alat ini didukung oleh tiga clamp meter yang dapat dipasang bersamaan untuk pengukuran multi-saluran, ideal untuk aplikasi di industri manufaktur atau fasilitas komersial. Dalam mode data logger, HVACR Tester mampu menyimpan hingga 17.470 pembacaan untuk konfigurasi tiga fase atau 52.400 pembacaan untuk pengaturan satu fase, yang dapat dikelompokkan menjadi 85 grup berbeda. Kemampuan penyimpanan data yang besar ini memungkinkan pemantauan jangka panjang tanpa kehilangan informasi penting. Data yang terekam dapat ditransfer ke komputer melalui antarmuka USB dan dianalisis lebih lanjut menggunakan software bawaan.

Aplikasi utama HVACR Tester mencakup pemeliharaan preventif, troubleshooting sistem HVACR, serta verifikasi kualitas daya di pabrik, gedung perkantoran, atau pusat data. Alat ini sangat berguna untuk mengidentifikasi ketidakseimbangan beban, distorsi harmonik, atau fluktuasi tegangan yang dapat memengaruhi kinerja peralatan. Dengan desain yang mudah digunakan dan dilengkapi fitur plug-and-play, teknisi dapat langsung memulai pengukuran tanpa prosedur rumit.

Produk ini sudah dikalibrasi dari pabrik, namun tersedia opsi kalibrasi standar laboratorium bersertifikat ISO untuk memastikan keandalan hasil pengukuran. Paket penjualan mencakup semua aksesori penting seperti clamp meter, kabel pengaman, adaptor, dan case pelindung, sehingga pengguna siap beroperasi segera setelah pembelian. Kalibrasi sertifikat ISO yang disertakan bersifat khusus untuk setiap pelanggan dan tidak dapat dikembalikan.

HVACR Tester PCE-830-2 merupakan investasi berharga bagi profesional yang membutuhkan alat ukur multifungsi dengan fleksibilitas tinggi. Kombinasi antara fitur canggih, antarmuka intuitif, dan dukungan software analisis membuatnya unggul dalam memenuhi kebutuhan industri modern. Dengan daya tahan dan portabilitas yang baik, alat ini cocok untuk digunakan di lapangan maupun lingkungan produksi yang menuntut presisi dan efisiensi. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Analysis of a network of 3 phases/4 conductors, 3 phases/3 conductors, 1 phase/2 conductors, 1 phase/3 conductors – Measures effective real value (V 123 and I 123) – Measures active power (W, KW, MW, GW) – Measures apparent and reactive power (KVA, KVAR) – Power Factor (PF), phase angle (Φ) – Measures energy and work (Wh, KWh, KVARh, PFh) – Measures current from 0.1mA to 3000A, allowing for the reserve power of a factory to be determined – Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors]) – CT conditions (1 to 600) and PT (1 to 3000) are programmable – Indicates current wave forms and voltage overlap. – 512KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings using the system of 3 phases / 4 conductors) – Indicates wave forms, efficiency parameters and harmonic distortion – Backlit LCD wth dot matrix – Average power (AD in W, KW, MW) – Maximum power (MD in W, KW, MW) with the programmable period – Analysis of harmonic distortion up to a curvature of 99 – Indication of up to 50º form of harmonic wave – Indication of the wave form with maximum value (1024 readings / period) – Analysis of absolute distortion (%THD-F) – Diagram of graphic equilibrium with parameters of a 3 phase system – Detects up to 28 transistors (time and cycles) with a programmable threshold (%) – Relation of 3 phases of voltage or asymmetrical current (VUR) – Factor of 3 phases of voltage and asymmetrical current (d0%, d2%) – USB port (optically insulated) – Integrated timer and calendar to record data

Technical Specifications
Measurement values	Measurement ranges / resolution / accuracy
PCE-830 + PCE-6801 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W 1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W 10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W 100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW 1,000 kW to 9,999 kW / 1 kW / ±1% ±8 kW
PCE-830 + PCE-6802 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W 1.000 kW to 9.999 kW / 0.001 kW / ±1% ±8 W 10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W 100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW 1000 kW to 9999 kW / 1 kW / ±1% ±8 kW 0.000 MW to 9.999 MW / 0.001 MW / ±1% ±80 kW
PCE-830 + PCE-3007 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1)	10.0 W to 999.9 W / 0.1 W / ±1% of measurement range 1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range 10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range 100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range 1,000 kW to 9,999 kW / 1 kW / ±1% of measurement range
PCE-830 + PCE-6801 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	0.04 A to 1 A / 0.001 A / ±0.5% ±0.05 A 0.4 A to 10.0 A / 0.01 A / ±0.5% ±0.05 A 4 A to 100.0 A / 0.1 A / ±1.0% ±0.5 A
PCE-830 + PCE-6802 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	10.00 A / 0.01 A / 4 A to 100.0 A / 0.01 A / ±0.5% ±0.5 A 40 A to 1000.0 A / 0.1 A / ±0.5% ±5 A
PCE-830 + PCE-3007 Current AC (50 Hz or 60 Hz, auto range select, TRMS)	0 to 300 A / 0.1 A / ±1.0% of measurement range 300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range 1,000 A to 3,000 A / 1 A / ±1.0% of measurement range
Voltage AC (50 Hz or 60 Hz, TRMS)	20.0 V … 500.0 V / 0.1 V / ±0.5 % ±5 digits (grounded) 20.0 V … 600.0 V / 0.1 V / ±0.5 % ±5 digits (phase to phase)
Harmonic distortionof AC voltage	1º to 20º / 0.1% / ±1.0% 21º to 49º / 0.1% / 4% of reading ±2.0% 50º to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-6801 Harmonics of AC current in %	1º to 20º / 0.1% / ±0.2% of reading ±1.0% 11º to 20º / 0.1% / ±2% of reading ±1.0% 21º to 50º (A)/ 0.1% / ±5% of reading ±1.0% 21º to 50º (mA)/ 0.1% / ±10% of reading ±1.0% 51º to 99º / 0.1% / ±35% of reading ±1.0%
PCE-830 + PCE-6802 Harmonics of AC current in %	1º to 10º / 0.1% / ±2% 21º to 49º / 0.1% / 4% of reading ±2.0% 50º to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-3007 Harmonics of AC current in %	1º to 10º / 0.1% / ±2% 21º to 49º / 0.1% / ±6% 50º to 99º / 0.1% / ±10%
PCE-830 + PCE-6801 / PCE-830 + PCE-6802 Power Factor (PF)	0.00 to 1.00 / 0.01 / ±0.04
PCE-830 + PCE-3007 Power Factor (PF)	0.000 to 1,000 / 0.001 / ±0.04
PCE-830 + PCE-6801 / PCE-830 + PCE-6802 Phase angle (Phi)	-180° to 180° / 0.1° / ±1°
PCE-830 + PCE-3007 Phase angle (Phi)	0° to 180° / 0.1° / ±2°
PCE-830 + PCE-6801 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±1% 20.0% to 100% / 0.1% / ±3% of reading ±5% 100% to 999.9% / 0.1% / ±10% of reading ±10%
PCE-830 + PCE-6802 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±2% 20.0% to 100% / 0.1% / ±6% of reading ±1% 100% to 999.9% / 0.1% / ±10% of reading ±1%
PCE-830 + PCE-3007 Total harmonic distortion	0.0 to 20.0% / 0.1% / ±2% 20.0% to 100% / 0.1% / ±6% of reading ±1% 100% to 999.9% / 0.1% / ±10% of reading ±1%
Maximum measurement of AC voltage and current	50 Hz / 19 µS / ±5% ±30 digits 60 Hz / 16 µS / ±5% ±30 digits
Peak value measurement of AC voltage and current	1.00 to 99.99 / 0.01 / ±5% ±30 digits
Frequency range in automatic mode	45 Hz to 65 Hz / 0.1 H z / 0.1 Hz
Memory	512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors
Port	USB
Software and cable	included, for Windows 2000, XP, ME
Display	backlit LCD with dot matrix
Power	8 AA batteries (Mignon)
Dimensions	257 mm x 155 mm x 57 mm10.1 in x 6.10 in x 2.24 in
Weight	1.16 kg / 2.56 lbs
Operating conditions	max. 85% relative humidity-10º C to 50º C / 14º F to 122º F
Type of protection / standards	IEC 61010, 600 V/CAT III
Set 1: PCE-830 + PCE-6801 amp clamp (100 A) – Electrical conductor pick-up: 30 mm / 1.2 in diameter – Range selection: manual (1 A, 10 A, 100 A) – Dimensions: 210 mm x 62 mm x 36 mm / 8.2 in x 2.4 in x 1.4 in – Weight: 200 g / 7 oz
Set 2: PCE-830 + PCE-6802 amp clamp (1000 A) – Electrical conductor pick-up: 55 mm / 2.2 in diameter – Range selection: manual (10 A, 100 A, 1,000 A) – Dimensions: 244 mm x 97 mm x 46 mm / 8.6 in x 97 in x 46 in – Weight: 600 g / 1.3 lbs
Set 3: PCE-830 + PCE-3007 flexible amp clamp (3000 A)- Electrical conductor pick-up: 170 mm / 6.69 in diameter – Minimum radial curve : 35 mm / 1.4 in – Length of electrical conductor: 610 mm / 24.0 in – Diameter of electrical conductor: 14 mm / 0.55 in – Dimensions (Box): 130 mm x 80 mm x 43 mm / 5.1 in x 3.1 in x 1.6 in – Weight: 410 g / 14.4 oz
Outline of the PCE-830
Connecting the amp clamps to the PCE-830: 1. Turn on the device. 2. Push the “1f3f” key until “3P3W” appears on the display for 3 phases / 3 conductors. 3. Connect the 3 test cables from the voltage with L1, L2, L3 and the analyser. The amp clamps are connected, as seen in the image to the right, between the device and the circuit. 4. The results can then be seen on the display.

1 x HVACR Tester PCE-830-2 3 x Amp clamps – Depending on the set ordered (PCE-6801, PCE-6802 or PCE-3007) 4 x Alligator clips 4 x Safety test lines (3m long) 8 x Batteries 1 x Mains adaptor 1 x Carrying case 1 x USB cablem software 1 x User’s manual 1 x ISO Calibration Certificate Calibration certificates are issued specifically for the customer and are excluded from the right of return.
