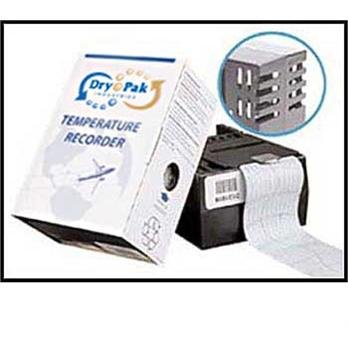

These recorders generate a permanent paper chart print-out of the actual temperature conditions that occurred while goods were in-transit. Once the goods reach their destination, the recorder is removed and the chart is easily extracted from the unit.
These strip charts are available in 5, 10, 20, 30, 60 & 90 day run-out times. There are three different temperature range models to suit almost any customer application (Standard, High and Low Temperature models). The accuracy level of these recorders is +/- 1 Deg C.
Applications
- Ocean, Rail, Truck and Air Shipping Containers
- Produce and Snack Food Products
- Pharmaceuticals
- Nutritional Products
- Diagnostic Test Kits
- Chemicals
- Food Service/Hospitality Industry
Specifications
- +/- 1 Deg C accuracy
- Visible start-up verification
- Tamper evident seal with bar code and serial number
- Simple to operate
- NIST traceable calibration
Thomas No | Mfr No | Description |
---|---|---|
1193W36 | 16000 | 5 Day Strip Chart Recorder, -20F – 100F |
1193W37 | 16100 | 10 Day Strip Chart Recorder, -20F – 100F |
1193W38 | 16200 | 20 Day Strip Chart Recorder, -20F – 100F |
1193W39 | 16300 | 30 Day Strip Chart Recorder, -20F – 100F |
1193W40 | 16400 | 60 Day Strip Chart Recorder, -20F – 100F |
1193W41 | 16500 | 90 Day Strip Chart Recorder, -20F – 100F |
