Triple Contact Alarm System
When activated, the alarm contacts will open or close, triggering the mechanism of your choice, whether a buzzer, light or any other electrical device. The alarm is activated when the measurements exceed the setpoint by a user-selectable margin from 50 to 450 mg/L (ppm).
Simple Probe Installation
HI9935 operates with the optional Hanna 4-ring probes to provide a linear and repeatable measurement. The conductivity/TDS probe can be installed quickly and easily. Simply plug the DIN connector into the socket and tighten the retainer ring. The TDS probe incorporates a temperature sensor and the controllers will automatically compensate for the temperature effect. Similarly, the pH electrode can be installed quickly and easily. Simply plug the universal BNC connector into the socket and twist it into a secured position.
Matching Pin
A matching pin/ground probe can be connected to the appropriate terminals to extend electrode life and eliminate interference.
Fail Safe Alarm System
Hanna’s exclusive Fail Safe Alarm System protects against problems caused by power supply failure or signal interruption, which are typical risks in industrial environments. An alarm condition is indicated by a red LED, located directly on the front panel of the controller.
Proportional Control

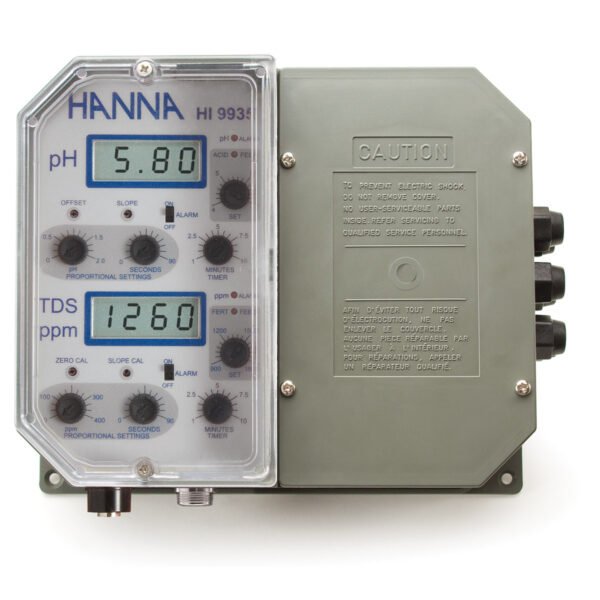

With proportional control, you can fine tune your treatment plant and minimize the use of chemicals. The proportional settings can be fine tuned through two conveniently positioned dials on the front panel. Independent proportional settings for pH and TDS can be adjusted from 0 to 90 seconds, 0 to 2.0 for pH and 0 to 400 mg/L (ppm) for TDS.
Durable Construction
This controller is housed in a rugged, modular, fiber-reinforced ABS housing.
| Specification Name | Detail |
|---|---|
| sku | HI9935-1 |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy (@20°C/68°F) | ±0.02 pH |
| TDS Range | 0.00 to 1999 ppm (mg/L) |
| TDS Resolution | 1 ppm (mg/L) |
| TDS Accuracy (@20°C/68°F) | ±2% F. S |
| Typical EMC Deviation | ±2 % full scale (EC and TDS) / ±0.5 °C |
| Calibration | Through “OFFSET” and “SLOPE” trimmers for pH, and “ZERO CAL” and “SLOPE CAL” for TDS |
| Setpoint Range | From 4.0 to 7.0 pH and 900 to 1800 ppm (mg/L |
| Proportional Control | Two independent controls: pH from 0.0 to 2.0 and TDS from 0.0 to 400 ppm (mg/L) with two separate time cycles from 0 to 90 seconds |
| Alarm Contacts | Terminals can be configured as normally open or normally closed (isolated output Max. 2A, Max. 240V, resistive load, 1,000,000 strokes). The alarm is activated if pH falls below the setpoint by the userselectable interval (0 to 2 pH),or TDS exceeds the setpoint by more than the user-selectable interval (0 to 400 ppm) or due to overdosage |
| TDS Ratio | 0.65 ppm (mg/L) = 1 µS/cm |
| Probe | Any combination pH electrode with a universal BNC connector and Hanna TDS 4-ring potentiometric probe with built-in temperature sensor and DIN connector (optional) |
| Dosing Terminals | Two sets of independent terminals (115 to 240V, Max. 2A, 1,000,000 strokes) are activated whenever pH exceeds the pH setpoint and for the TDS falls below the TDS setpoint |
| Power Supply | 220/240V or 110/115V at 50/60Hz |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Enclosure/ Case Material | Fiber-reinforced, self-extinguishing ABS |
| Dimensions | 181 x 221 x 142mm (7.1 x 8.7 x 5.6″) |
| Weight | 1.6 Kg (3.5 lb.) |
