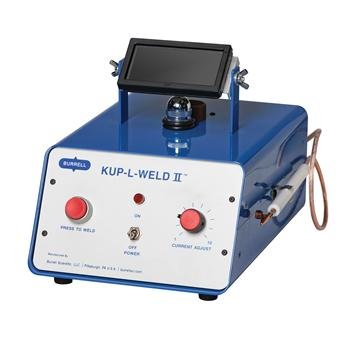

The Burrell KUP-L-WELD® II welder is a complete, easy-to-use, self-contained unit for the instantaneous welding of thermocouples. The KUP-L-WELD® II is recommended for welding 30- to 14-gauge constantan, platinum, platinum/rhodium, and iron constantan. Simply plug the unit’s electric cord into a convenient, properly grounded, 3-prong, 110 to 120 volt, ac power source and the KUP-L-WELD® II welder is ready to operate. During welding, a fully adjustable, flash-protection viewing screen protects the operator. The illuminated work area provides the operator with good visibility of the wire’s contact with the electrode, helping to maintain consistent thermocouple quality. The Current Adjustment control to the appropriate setting—the maximum of 10 for most welds. However, it is adjustable from 1 to 10 depending on the wire gauge. The KUP-L-WELD® II can be set to draw from a minimum of 19 amps up to a maximum of 28 amps. The KUP-L-WELD® II Thermocouple Welder is 9″ wide x 13-1/2″ deep x 8″ high and takes up less than one square foot of counter space, and weighs just 4 lbs., so it can be easily moved.
| Thomas No | Mfr No | Description |
|---|---|---|
| 1198Y24 | B7307700-EACH | KUP-L-WELD II Thermocouple Welder, 115/230V |
| 23A00D182 | B0005866-Each | Flux Cup for Kup-L-Weld® II Thermocouple Welder |
| 23A00D183 | B0006638-Each | Welding Pen Replacement for Kup-L-Weld® II Thermocouple Welder |
| 23A00D184 | B0006840-Each | Carbon Replacement for Kup-L-Weld® II Thermocouple Welder |
