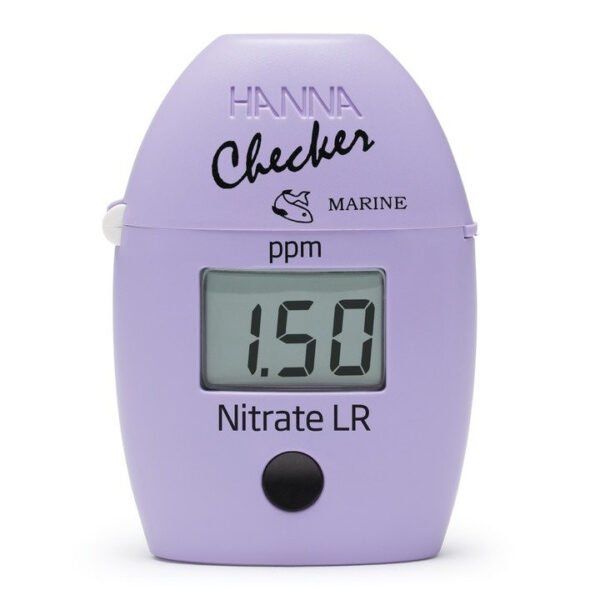

The HI781 Checker®HC (Handheld Colorimeter) is a simple, accurate, and cost-effective way to measure nitrate from 0.00 to 5.00 ppm (as NO3–) in your saltwater aquarium. For samples containing 5.0 to 50.0 ppm nitrate, follow the approved dilution procedure.
Nitrate is a by-product of the Nitrogen cycle. Excessive amounts of nitrates in a reef aquarium can promote the growth of undesirable organisms including algae and dinoflagellates while insufficient amounts can lead to starvation in which SPS and other corals will show signs including the loss of color and paleness.
The HI781 Nitrate Checker HC is a handheld colorimeter that uses the Beer-Lambert principle to determine the concentration of nitrate colorimetrically. The HI781 is designed specifically to measure low levels of nitrate in a saltwater aquarium.
Features at-a-glance:
- For use with saltwater samples.
- More accurate than chemical test kits.
- Dedicated to a single parameter.
- Small size, big convenience.
- No errors with a digital readout.
- Ideal for aquariums and marine biology applications.
- For samples containing 5-50 ppm nitrate, follow the dilution procedure.
| Specification Name | Detail |
|---|---|
| SKU | HI781 |
| Range | 0.00 to 5.00 ppm (as NO3–) 0.0 to 50.0 ppm (calculated) using dilution |
| Resolution | 0.01 ppm |
| Accuracy @ 25°C/77°F | ±0.25 ppm ±2% of reading @ 25 °C (77 °F) ±2.5 ppm ± 5% of calculated reading using dilution |
| Light Source | LED @ 525 nm |
| Light Detector | silicon photocell |
| Method | Colorimetric method. The reaction between nitrate and the reagent causes a pink/violet tint in the sample. This checker has been developed to work with seawater samples. |
| Battery Type | (1) 1.5V AAA |
| Auto-off | after ten minutes of non-use |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions | 86.0 x 61.0 x 37.5 mm (3.4 x 2.4 x 1.5”) |
| Weight | 64 g (2.3 oz) |
| Ordering Information | Each HI781 is delivered in a case with custom insert and is supplied with: Marine Nitrate Low Range reagent starter kit (reagents for 25 tests), Sample cuvette and cap (2 pcs.), Filter paper (25 pcs.), Filter holder (1 pc.), Mixing vial and cap (1 pc.), 5 mL syringe with tip (1 pc.), 10 mL syringe (1 pc.), 1 mL graduated syringe (1 pc.), Plastic refilling pipette (1 pc.), 16 gauge blunt needle (1 pc.), 1.5V AAA Alkaline battery (1 pc.), and Instruction manual. |
| Reagent Set | HI781-25 (25 tests) |
| Calibration Set | HI781-11 |
| Warranty | 1 year |
,
| Type | Country | Document |
| Frequently Asked Questions (FAQ) | US | Download |
,
| Product Code | Country | SDS Sheet |
| HI781A-0 | US | Download |
| HI781B-0 | US | Download |
| HI781C-0 | US | Download |
