Features:
* Up to 96 samples can be processed at one time, and the rotation speed can reach 2500rpm.
* Run time and pause time can be set.
* Configure various types of sponge test tube racks.
* Button-type jog mode, double switch design.
* Power-off memory function, saving setup time.
* Accelerates uniformly, effectively avoiding sample splashing.
* Three working modes of jog, continuous and intermittent pulse can be selected at will.
* LED display speed and time, simple operation panel, precise control by microprocessor.
Technical Parameters:
|
Model |
BHY-2500 |
|
Speed Range |
500~2500rpm |
|
Speed Regulation Accuracy |
±1rpm |
|
Amplitude |
3.6mm |
|
Time Setting Range |
1s~99h59min |
|
Pulse Interval Timing Range |
1s~99s |
|
Pulse Operation Timing Range |
1s~99min59s |
|
Consumption |
120W |
|
100~230V, 50/60Hz |
|
|
Standard Accessory |
I, II, III, IV |
|
External Size (L*W*H) |
438*301*429mm |
|
Package Size (W*D*H) |
530*380*510mm |
|
Gross Weight |
27kg |

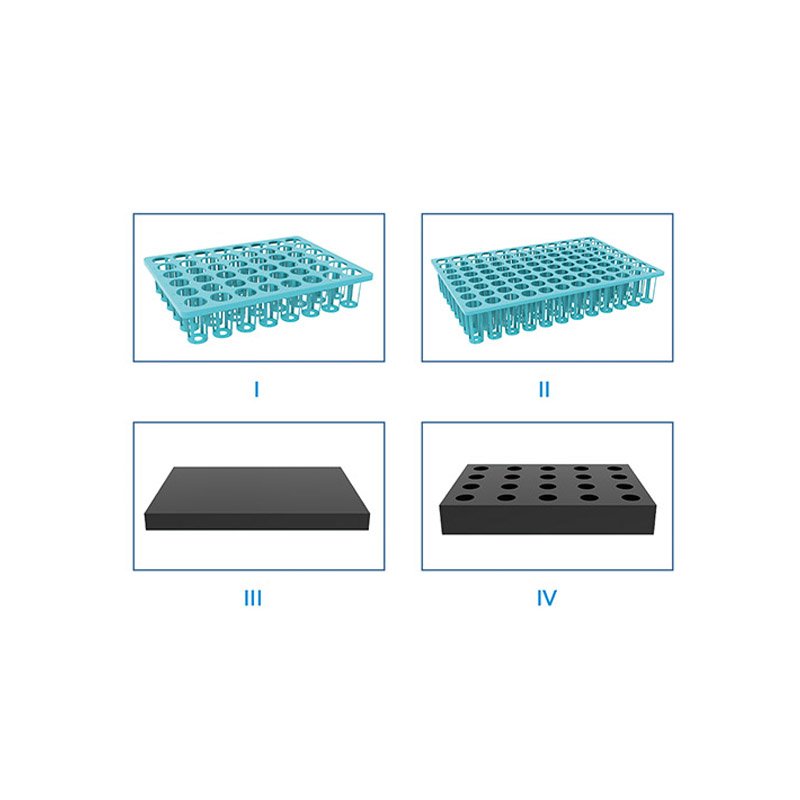

Accessories:
|
Model |
Pore Diameter |
Compatible Type |
Size |
|
Ⅰ |
48-Well Virus Sampling Tube Rack |
20ml or 30ml virus sampling tube |
272*205*50mm |
|
Ⅱ |
96-Well Virus Sampling Tube Rack |
7ml or 10ml virus sampling tube 10ml or 15ml centrifuge tube |
296*202*50mm |
|
Ⅲ |
Replaceable Tray Pad |
/ |
302*212*25mm |
|
Ⅳ |
50ml centrifuge tube |
300*210*45mm |
