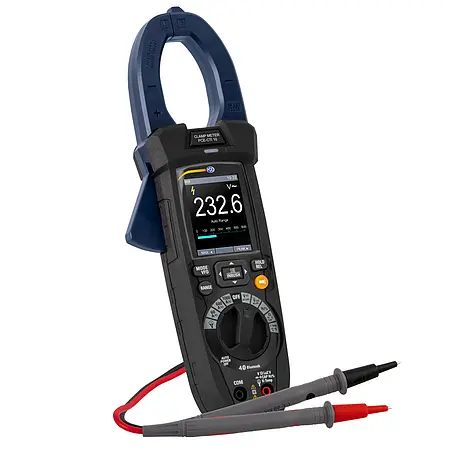

Multimeter / TRMS Multimeter PCE-CTI 10

Multimeter / TRMS Multimeter dengan antarmuka Bluetooth 4.0 ini adalah alat ukur serbaguna yang dirancang untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC. Dengan prinsip kerja induktif, alat ini memungkinkan pengukuran arus tanpa memutus rangkaian, sehingga ideal untuk pemeliharaan sistem seperti photovoltaic, di mana pengukuran saat operasional sangat diperlukan. Fitur TRMS (True Root Mean Square) memastikan akurasi tinggi bahkan pada bentuk gelombang yang tidak sinusoidal, menjadikannya andal untuk berbagai aplikasi industri.

Alat ini juga dilengkapi dengan fungsi pengukuran inrush current, yang sangat berguna untuk menganalisis lonjakan arus saat peralatan seperti motor atau lampu stadion dinyalakan. Selain itu, fitur VFD (Variable Frequency Drive) memungkinkan pengukuran pada frekuensi 45 Hz hingga 1 kHz, cocok untuk aplikasi dengan konverter frekuensi. Fleksibilitasnya semakin ditingkatkan dengan kemampuan ekspansi menggunakan clamp meter tambahan yang dapat mengukur arus hingga 3000 A AC, memenuhi kebutuhan pengukuran di lingkungan industri manufaktur yang menuntut presisi.

Dukungan Bluetooth 4.0 memungkinkan koneksi nirkabel ke perangkat Android atau iOS melalui aplikasi “Meterbox Pro”. Aplikasi ini memfasilitasi pencatatan data, visualisasi grafik, dan penyimpanan hingga 100.000 nilai pengukuran dengan timestamp. Fitur data logging ini sangat bermanfaat untuk analisis jangka panjang, seperti pemantauan kinerja sistem tenaga surya atau turbin angin. Kemudahan digunakan dan integrasi dengan teknologi modern membuat alat ini efisien untuk pekerjaan lapangan maupun laboratorium.

Multimeter ini juga menawarkan opsi kalibrasi standar ISO, menjamin keandalan hasil pengukuran sesuai persyaratan industri. Dengan desain portabel dan kelengkapan aksesori seperti termokopel Type-K, kabel pengukur, dan casing pelindung, alat ini siap digunakan di berbagai kondisi lapangan. Aplikasinya mencakup sektor energi terbarukan seperti PLTA, PLTS, dan pembangkit listrik tenaga angin, serta instalasi mesin listrik berskala besar.

Keunggulan lain dari produk ini adalah kemampuannya untuk beradaptasi dengan kebutuhan pengukuran yang beragam, mulai dari tugas rutin hingga analisis kompleks. Kombinasi antara akurasi tinggi, fitur canggih, dan kemudahan digunakan menjadikannya solusi ideal bagi teknisi, engineer, atau profesional di bidang kelistrikan. Dengan dukungan sertifikasi kalibrasi opsional, pengguna dapat memastikan konsistensi hasil pengukuran sesuai standar internasional, memperkuat kepercayaan dalam pengambilan keputusan teknis. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Free app for Android and iOS- Measuring range 0 … 1500 V AC/DC- Data logging for up to 100,000 measured values- Inrush current measurement- Additionally with LowZ voltage measurement- 2.36″ TFT display- With voltage and temperature measurement- Optionally with calibration certificate

DC voltage
Measuring range	±600.0 mV
Resolution	0.1 mV
Accuracy	±(0.8 % of measured value + 8 digits)
Measuring range	±6.000 V
Resolution	0.001 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	±60.00 V
Resolution	0.01 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	± 600.0 V
Resolution	0.1 V
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	±1500 V
Resolution	1 V
Accuracy	±(0.8 % of measured value + 5 digits)

Input impedance: >10 MΩ; Overvoltage protection: 1500 VDC / 1000 VAC rms

AC voltage
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1500 V
Resolution	1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)

The accuracy relates to 10 … 100% of the respective measuring range and a sine wave input impedance: >9 MΩ; Overvoltage protection: 1000 V DC/AC RMSThe accuracy of the “PEAK” function is: ±10 % of measured valueThe response time of the “PEAK” function is: 1 ms

AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.0 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMSThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

DC and AC voltage (50 … 1 kHz)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0 … 1000 V
Resolution	1 V
Accuracy	±(2.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

DC and AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

Non-Contacting Voltage Verification (NCV)
Detection range	100 … 1000 AC/DC
Direct current
Measuring range	±60.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±600.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±1000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Overload protection: 1000 A AC/DC

Alternating current (50 … 60 Hz)
Measuring range	0.00 … 60.00 A
Resolution	0.01 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 A
Resolution	0.1 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1000 A
Resolution	1 A
Accuracy	±(2.5 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100 % of the respective measuring range and a sine waveThe inrush current measurement is for reference only

AC current measurement with flexible clamp meter (50 … 400 Hz)
Measuring range	0.00 … 30.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0.0 … 300.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0 … 3000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

Resistance and continuity measurement
Measuring range	0.0 … 600.0 Ω
Resolution	0.1 Ω
Accuracy	±(1.0 % of measured value + 10 digits)
Measuring range	0.000 … 6.000 kΩ
Resolution	0.001 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kΩ
Resolution	0.01 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kΩ
Resolution	0.1 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MΩ
Resolution	0.001 MΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 MΩ
Resolution	0.01 MΩ
Accuracy	±(2.5 % of measured value + 10 digits)

Continuity test acoustic signal at: <50 Ω Overvoltage protection: 1000 V AC/DC

Frequency measurement
Measuring range	0.00 … 60.00 Hz
Resolution	0.01 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 Hz
Resolution	0.1 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 kHz
Resolution	0.001 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kHz
Resolution	0.01 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kHz
Resolution	0.1 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MHz
Resolution	0.001 MHz
Accuracy	±(0.2 % of measured value + 5 digits)

Overvoltage protection: 1000 V AC/DC Sensitivity: >2 Vrms with a duty cycle between 20 … 80 % and a frequency of <100 kHz>5 Vrms with a duty cycle between 20 … 80 % and a frequency of >100 kHz

Duty cycle
Measuring range	10.0 … 90.0 %
Resolution	0.1 %
Accuracy	±(1.2 % of measured value + 8 digits)

Frequency range: 40 … 10 kHz; Pulse amplitude±5 V with a duration between 100 µs … 100 mS

Capacity
Measuring range	0.00 … 60.00 nF
Resolution	0.01 nF
Accuracy	±(3.0 % of measured value + 20 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.000 … 6.000 µF
Resolution	0.001 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.00 … 60.00 µF
Resolution	0.01 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0 … 6000 µF
Resolution	1 µF
Accuracy	±(3.5 % of measured value + 20 digits)
Measuring range	0.00 … 60.00 mF
Resolution	0.01 mF
Accuracy	for reference only
Measuring range	0.0 … 600.0 mF
Resolution	0.1 mF
Accuracy	for reference only

Overvoltage protection: 1000 A AC/DC

Temperature measurement thermocouple Type K (connection)
Measuring range	-40.0 … 600.0 °C
Resolution	0.1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	600 … 1000 °C
Resolution	1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	-40.0 … 600.0 °F
Resolution	0.1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	600 … 1800 °F
Resolution	1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	245.0 … 600.0 K
Resolution	0.1 K
Accuracy	±(1.5 % of measured value + 3 K)
Measuring range	600 … 1273 K
Resolution	1 K
Accuracy	±(1.5 % of measured value + 3 K)

Overvoltage protection: 1000 A AC/DC

Diode test
Test current	<1.5 mA
Maximum voltage	3.3 VDC

Further specifications
Storage space	16 groups with a total storage space
	of 100,000 measured values
Clamp diameter horizontal	38 mm / 1.49″
Clamp diameter vertical	63 mm / 2.48″
Clamp opening	45 mm / 1.77″
Protection class	IP65
Interface	Bluetooth 4.0
Pollution degree	2
Insulation categories	CAT IV 600 V, CAT III 1000 V, CAT II 1500 V
Maximum working height	2000 m / 6562 ft
Power supply battery	7.4 V, 1200 mAh Li-ion battery
Power supply charger	Primary: 100 … 240 V AC, 50 … 60 Hz
	Secondary: 12 V DC, 2 A
Plug connection charger	Europa, USA, England, China
Battery status display	available
Automatic switch-off	switched off, 15, 30 or 60 minutes
Display	2.36″ TFT
Display frequency	3 Hz
Reference conditions	18 … 28 °C, 64 … 82 °F; <80 % RH,
	non-condensing
Dimensions	275 x 100 x 45 mm / 10.8 x 3.9 x 1.7″
Weight	481 g / 16.9 oz

1 x Multimeter / TRMS Multimeter PCE-CTI 101 x Thermocouple Type-K with adapter1 x Pair of measuring leads 1 x Carrying case1 x Battery charging station1 x Rechargeable battery1 x Instruction manual
