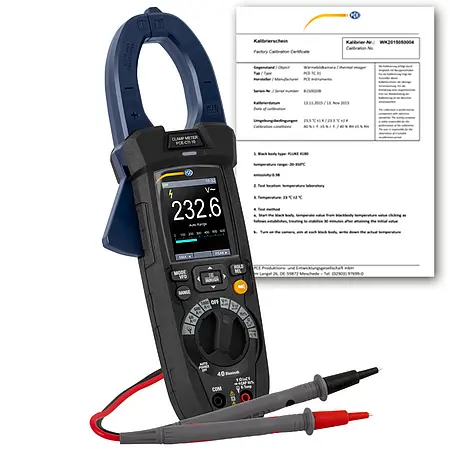

Name: Multimeter / TRMS Multimeter PCE-CTI 10-ICA incl. ISO Calibration Certificate
Brand: PCE-Instruments
SKU: 76350
Availability: InStock
Rating: 5 (1 reviews)

Multimeter / TRMS Multimeter dengan antarmuka Bluetooth 4.0 ini adalah alat ukur serbaguna yang dirancang untuk mengukur tegangan hingga 1500 V AC/DC dan arus hingga 1000 A AC/DC dengan akurasi tinggi. Alat ini menggunakan prinsip pengukuran induktif melalui clamp meter, memungkinkan pengukuran arus tanpa memutus rangkaian, sehingga ideal untuk aplikasi seperti pemeliharaan sistem fotovoltaik. Dengan fitur TRMS (True Root Mean Square), alat ini mampu mengukur sinyal non-sinusoidal secara akurat, menjadikannya cocok untuk berbagai kondisi pengukuran di lapangan.

Salah satu keunggulan utama multimeter ini adalah kemampuannya mengukur inrush current, yaitu lonjakan arus saat peralatan pertama kali dinyalakan, seperti pada motor ventilasi atau pencahayaan stadion. Fitur ini sangat penting untuk menentukan ukuran kabel dan pengaman yang tepat. Selain itu, alat ini dilengkapi dengan fungsi VFD (Variable Frequency Drive) yang memungkinkan pengukuran pada frekuensi 45 Hz hingga 1 kHz, membuatnya ideal untuk memantau sistem dengan konverter frekuensi.

Multimeter ini juga mendukung konektivitas Bluetooth 4.0, memungkinkan pengguna mentransfer data ke perangkat Android atau iOS melalui aplikasi “Meterbox Pro”. Data logging dengan kapasitas penyimpanan 100.000 nilai terukur memungkinkan analisis jangka panjang, termasuk pembacaan grafik dan pencatatan waktu. Fleksibilitas ini sangat berguna untuk pemantauan terus-menerus di industri manufaktur atau pembangkit listrik.

Untuk pengukuran arus yang lebih tinggi, multimeter dapat diperluas dengan clamp meter fleksibel opsional yang mampu mengukur hingga 3000 A AC. Clamp meter tambahan ini terhubung ke input tegangan dan mengkonversi nilai tegangan menjadi arus, memastikan kompatibilitas dengan berbagai aplikasi industri. Kombinasi fitur ini menjadikannya alat yang sangat serbaguna untuk instalasi mesin listrik, pembangkit listrik tenaga air, atau turbin angin.

Dilengkapi dengan sertifikat kalibrasi standar ISO, multimeter ini menjamin keandalan dan konsistensi pengukuran. Paket penjualan mencakup termokopel Type-K, kabel pengukur, casing pelindung, dan stasiun pengisian daya, membuatnya siap digunakan langsung di lapangan. Dengan desain yang mudah digunakan dan fitur canggih, alat ini menjadi solusi ideal untuk profesional di berbagai sektor industri. Untuk informasi lebih lanjut dan konsultasi gratis mengenai produk ini, hubungi kami di WhatsApp 6285717112222 atau email contact@alat-test.com. Kami menyediakan pengiriman cepat dengan kualitas terjamin dan harga kompetitif.

– Free app for Android and iOS- Measuring range 0 … 1500 V AC/DC- Data logging for up to 100,000 measured values- Inrush current measurement- Additionally with LowZ voltage measurement- 2.36″ TFT display- With voltage and temperature measurement- Incl. calibration certificate

DC voltage
Measuring range	±600.0 mV
Resolution	0.1 mV
Accuracy	±(0.8 % of measured value + 8 digits)
Measuring range	±6.000 V
Resolution	0.001 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	±60.00 V
Resolution	0.01 V
Accuracy	±(0.5 % of measured value + 5 digits)
Measuring range	± 600.0 V
Resolution	0.1 V
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	±1500 V
Resolution	1 V
Accuracy	±(0.8 % of measured value + 5 digits)

Input impedance: >10 MΩ; Overvoltage protection: 1500 VDC / 1000 VAC rms

AC voltage
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1500 V
Resolution	1 V
Accuracy	50 … 60 Hz: ±(1.2 % of measured value + 5 digits)
	61 … 1 kHz: ±(2.5 % of measured value + 5 digits)

The accuracy relates to 10 … 100% of the respective measuring range and a sine wave input impedance: >9 MΩ; Overvoltage protection: 1000 V DC/AC RMSThe accuracy of the “PEAK” function is: ±10 % of measured valueThe response time of the “PEAK” function is: 1 ms

AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.0 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.0 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMSThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

DC and AC voltage (50 … 1 kHz)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0.0 … 600.0 V
Resolution	0.1 V
Accuracy	±(2.5 % of measured value + 40 digits)
Measuring range	0 … 1000 V
Resolution	1 V
Accuracy	±(2.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

DC and AC voltage with low input impedance (LowZ)
Measuring range	0.000 … 6.000 V
Resolution	0.001 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.00 … 60.00 V
Resolution	0.01 V
Accuracy	±(3.5 % of measured value + 40 digits)
Measuring range	0.0 … 300.0 V
Resolution	0.1 V
Accuracy	±(3.5 % of measured value + 40 digits)

Input impedance: 300 kΩ; Overvoltage protection: 1000 VDC / VAC RMS

Non-Contacting Voltage Verification (NCV)
Detection range	100 … 1000 AC/DC
Direct current
Measuring range	±60.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±600.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	±1000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 8 digits)
Overload protection: 1000 A AC/DC

Alternating current (50 … 60 Hz)
Measuring range	0.00 … 60.00 A
Resolution	0.01 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 A
Resolution	0.1 A
Accuracy	±(2.5 % of measured value + 5 digits)
Measuring range	0 … 1000 A
Resolution	1 A
Accuracy	±(2.5 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100 % of the respective measuring range and a sine waveThe inrush current measurement is for reference only

AC current measurement with flexible clamp meter (50 … 400 Hz)
Measuring range	0.00 … 30.00 A
Resolution	0.01 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0.0 … 300.0 A
Resolution	0.1 A
Accuracy	±(3.0 % of measured value + 5 digits)
Measuring range	0 … 3000 A
Resolution	1 A
Accuracy	±(3.0 % of measured value + 5 digits)

Overload protection: 1000 A AC/DCThe accuracy relates to 10 … 100% of the respective measuring range and a sine wave

Resistance and continuity measurement
Measuring range	0.0 … 600.0 Ω
Resolution	0.1 Ω
Accuracy	±(1.0 % of measured value + 10 digits)
Measuring range	0.000 … 6.000 kΩ
Resolution	0.001 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kΩ
Resolution	0.01 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kΩ
Resolution	0.1 kΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MΩ
Resolution	0.001 MΩ
Accuracy	±(0.8 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 MΩ
Resolution	0.01 MΩ
Accuracy	±(2.5 % of measured value + 10 digits)

Continuity test acoustic signal at: <50 Ω Overvoltage protection: 1000 V AC/DC

Frequency measurement
Measuring range	0.00 … 60.00 Hz
Resolution	0.01 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 Hz
Resolution	0.1 Hz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 kHz
Resolution	0.001 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.00 … 60.00 kHz
Resolution	0.01 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.0 … 600.0 kHz
Resolution	0.1 kHz
Accuracy	±(0.2 % of measured value + 5 digits)
Measuring range	0.000 … 6.000 MHz
Resolution	0.001 MHz
Accuracy	±(0.2 % of measured value + 5 digits)

Overvoltage protection: 1000 V AC/DC Sensitivity: >2 Vrms with a duty cycle between 20 … 80 % and a frequency of <100 kHz>5 Vrms with a duty cycle between 20 … 80 % and a frequency of >100 kHz

Duty cycle
Measuring range	10.0 … 90.0 %
Resolution	0.1 %
Accuracy	±(1.2 % of measured value + 8 digits)

Frequency range: 40 … 10 kHz; Pulse amplitude±5 V with a duration between 100 µs … 100 mS

Capacity
Measuring range	0.00 … 60.00 nF
Resolution	0.01 nF
Accuracy	±(3.0 % of measured value + 20 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.000 … 6.000 µF
Resolution	0.001 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.00 … 60.00 µF
Resolution	0.01 µF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0.0 … 600.0 nF
Resolution	0.1 nF
Accuracy	±(3.0 % of measured value + 8 digits)
Measuring range	0 … 6000 µF
Resolution	1 µF
Accuracy	±(3.5 % of measured value + 20 digits)
Measuring range	0.00 … 60.00 mF
Resolution	0.01 mF
Accuracy	for reference only
Measuring range	0.0 … 600.0 mF
Resolution	0.1 mF
Accuracy	for reference only

Overvoltage protection: 1000 A AC/DC

Temperature measurement thermocouple Type K (connection)
Measuring range	-40.0 … 600.0 °C
Resolution	0.1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	600 … 1000 °C
Resolution	1 °C
Accuracy	±(1.5 % of measured value + 3 °C)
Measuring range	-40.0 … 600.0 °F
Resolution	0.1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	600 … 1800 °F
Resolution	1 °F
Accuracy	±(1.5 % of measured value + 5.4 °F)
Measuring range	245.0 … 600.0 K
Resolution	0.1 K
Accuracy	±(1.5 % of measured value + 3 K)
Measuring range	600 … 1273 K
Resolution	1 K
Accuracy	±(1.5 % of measured value + 3 K)

Overvoltage protection: 1000 A AC/DC

Diode test
Test current	<1.5 mA
Maximum voltage	3.3 VDC

Further specifications
Storage space	16 groups with a total storage space
	of 100,000 measured values
Clamp diameter horizontal	38 mm / 1.49″
Clamp diameter vertical	63 mm / 2.48″
Clamp opening	45 mm / 1.77″
Protection class	IP65
Interface	Bluetooth 4.0
Pollution degree	2
Insulation categories	CAT IV 600 V, CAT III 1000 V, CAT II 1500 V
Maximum working height	2000 m / 6562 ft
Power supply battery	7.4 V, 1200 mAh Li-ion battery
Power supply charger	Primary: 100 … 240 V AC, 50 … 60 Hz
	Secondary: 12 V DC, 2 A
Plug connection charger	Europa, USA, England, China
Battery status display	available
Automatic switch-off	switched off, 15, 30 or 60 minutes
Display	2.36″ TFT
Display frequency	3 Hz
Reference conditions	18 … 28 °C, 64 … 82 °F; <80 % RH,
	non-condensing
Dimensions	275 x 100 x 45 mm / 10.8 x 3.9 x 1.7″
Weight	481 g / 16.9 oz

1 x Multimeter / TRMS Multimeter PCE-CTI 10-ICA1 x Thermocouple Type-K with adapter1 x Pair of measuring leads 1 x Carrying case1 x Battery charging station1 x Rechargeable battery1 x Instruction manual1 x ISO Calibration Certificate N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
