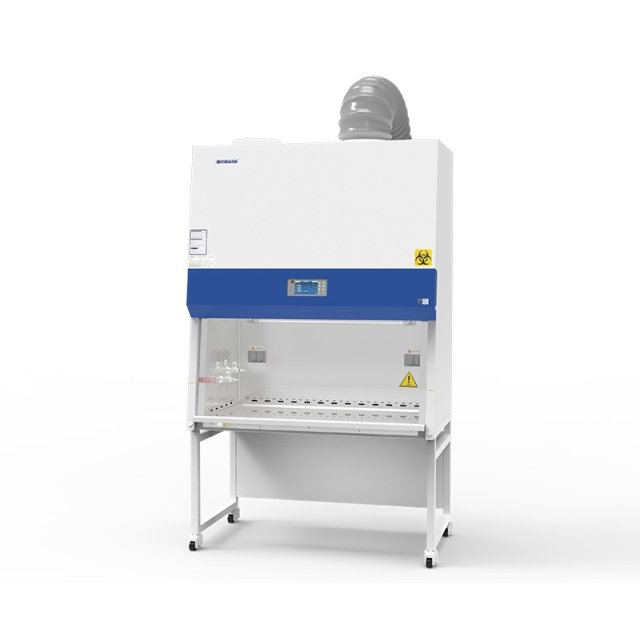

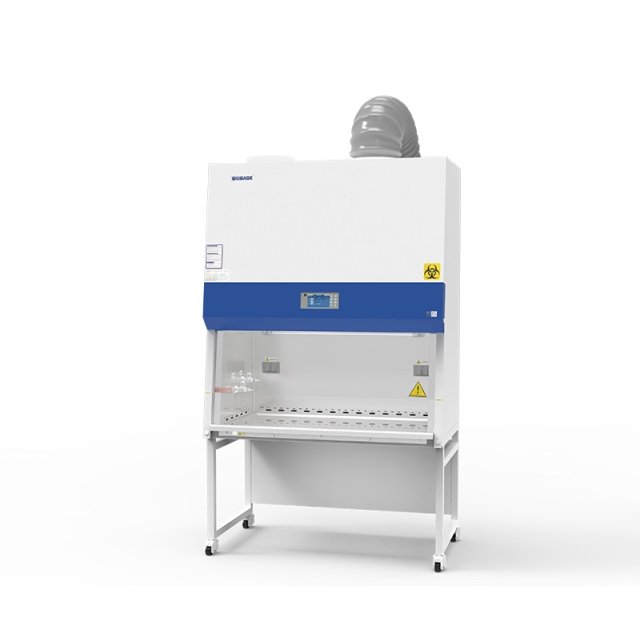

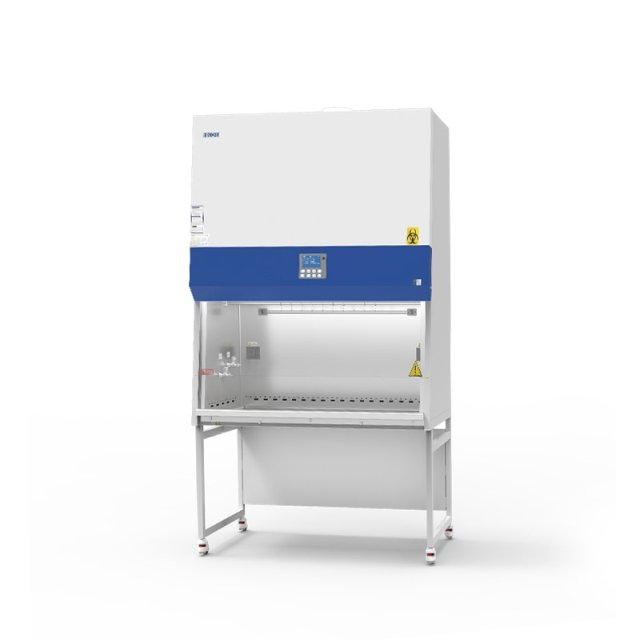

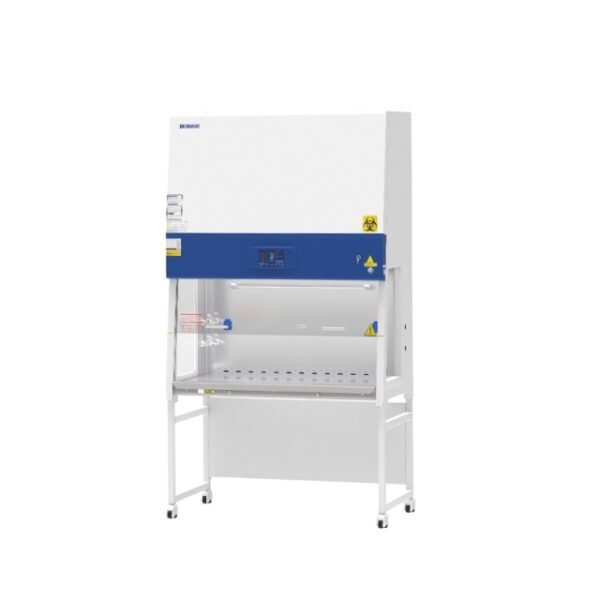

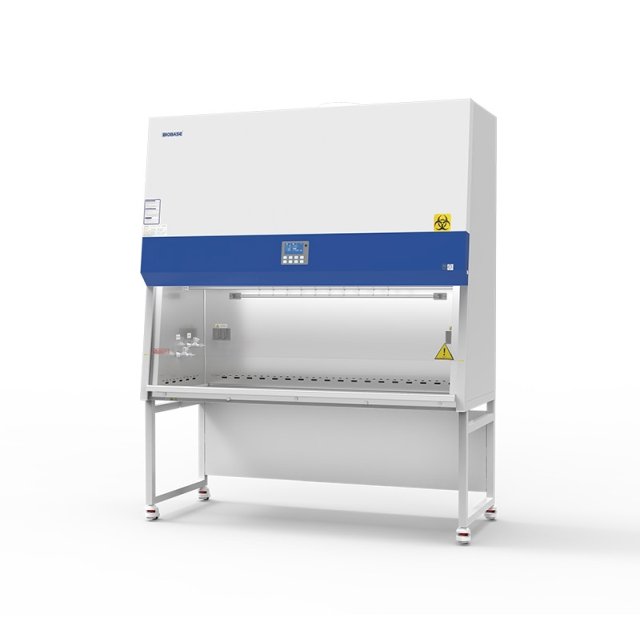

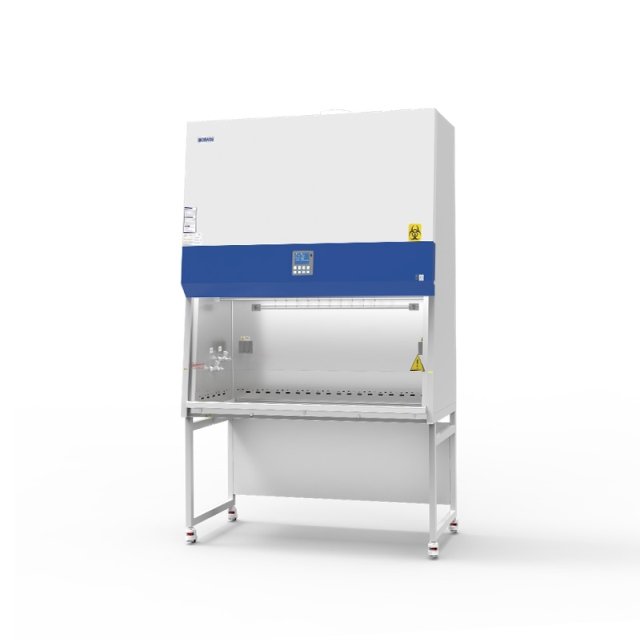

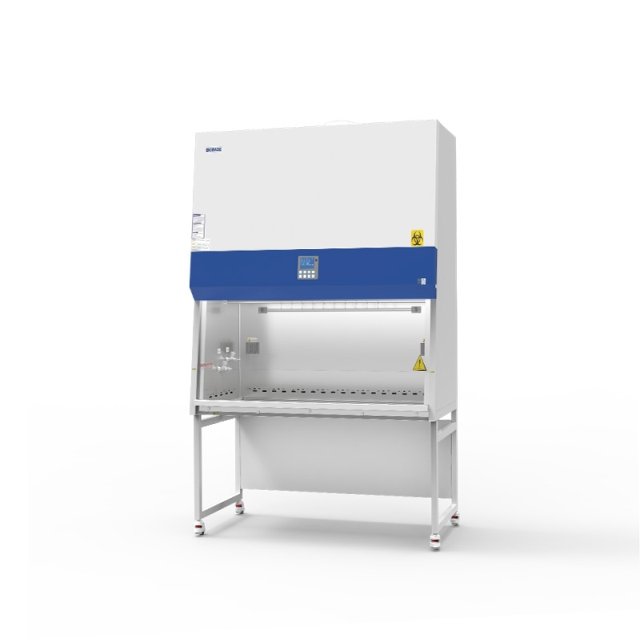

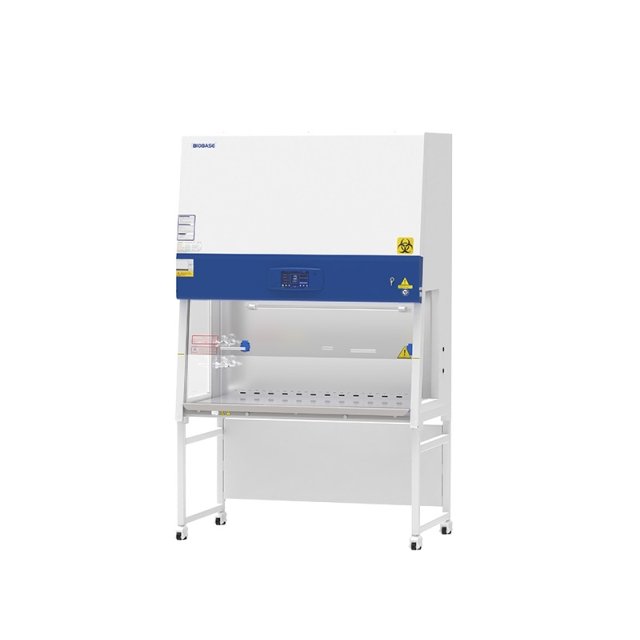

NSF Certified Class 2 Biosafety Cabinet Class II Type A2
This cabinet defined as class II A2 type microbiological safety cabinet.
Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Models:
|
Model |
BSC-4FA2(4′) |
BSC-3FA2-GL(3′) BSC-3FA2-NA(3′) |
BSC-4FA2-GL(4′) BSC-4FA2-NA(4′) |
BSC-6FA2-GL(6′) BSC-6FA2-NA(6′) |
|
|
External Size (W*D*H)mm |
1383*775*2295 |
1087*775*2265 |
1383*775*2295 |
1873*775*2295 |
|
|
Internal Size (W*D*H)mm |
1210*600*660 |
910*600*660 |
1210*600*660 |
1700*600*660 |
|
|
Work Surface Height |
750mm |
||||
|
Max Opening |
550mm (22’’) |
520mm(20.5’’) |
550mm (22’’) |
550mm (22’’) |
|
|
Tested Opening |
Safety height 200mm (8”) |
Safety height 254mm (10’’) |
Safety height 254mm (10’’) |
Safety height 254mm (10’’) |
|
|
Airflow Volume |
Inflow |
462m3/h(272cfm) |
445m3/h(259cfm) |
587m3/h(346cfm) |
824m3/h(485cfm) |
|
Down flow |
65%:863m3/h(507cfm) |
60%:649m3/h(382cfm) |
60%:863m3/h(507cfm) |
60%:1212m3/h(713cfm) |
|
|
Exhaust |
35%:462m3/h(272cfm) |
40%:441m3/h(259cfm) |
40%:587m3/h(346cfm) |
40%:824m3/h(485cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
||||
|
HEPA Filter |
Two, 99.995% efficiency at 0.3μm, filter life indicator |
||||
|
Filter Guard Type |
Aluminum alloy frame |
||||
|
Noise |
NSF 49≤67 dB |
||||
|
Illumination |
≥1000Lux |
||||
|
Display |
LCD Display |
||||
|
Waterproof Socket |
2, Total consumption:≤500W |
||||
|
Tap |
Water tap*1, Gas tap *1 |
||||
|
Ground Resistance |
≤ 0.10Ω |
||||
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
||||
|
Consumption |
500W |
400W |
500W |
700W |
|
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height. |
||||
|
DC Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
||||
|
Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
||||
|
UV Lamp |
30W |
20W |
30W |
40W |
|
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
|||||
|
Illuminating Lamp |
18W*2 |
10W*2 |
18W*2 |
22W*2 |
|
|
LED lamp |
|||||
|
Standard Accessory |
Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
||||
|
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Remote control |
||||
|
Package Size (W*D*H)mm |
1540*1080*1900 |
1240*1060*1840 |
1540*1080*1900 |
2020*1080*1900 |
|
|
Gross Weight(kg) |
340 |
270 |
340 |
370 | |
