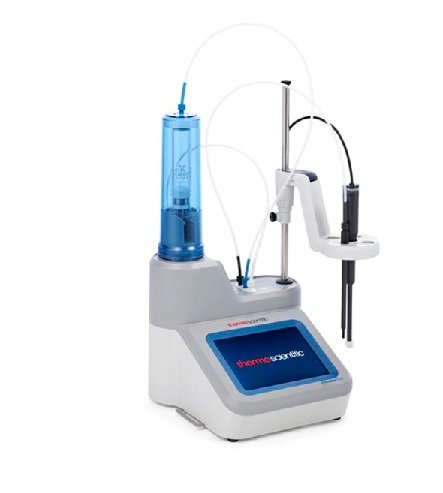

Orion Star T930 Ion Titrator without Electrode
Thermo Orion START9300 / ColeParmer EW-94102-35 / Daigger EF25388 / Fisher 13-642-960 / VWR 76285-328
Thomas 1155H02 / Spectrum 666-10291
| Orion Star T930 Ion Titrator and Kits The Thermo Scientific Orion Star T930 ion titrators are designed to increase your laboratory productivity by automating titrations. Our core electrochemistry technology is integrated with a state-of-the-art reagent dispensing system to create modern, simplified automated titrators designed to make performing titrations easier, more reliable and more reproducible than manual titrations. Use the Orion Star T930 ion titrator for dedicated ion concentration titrations and multiple known addition (MKA) testing including
Titration techniques include equivalence point titrations and preset mV endpoint titrations plus multiple known addition (MKA) mode. Using MKA mode, the titrator performs an automated calibration and calculation of sample concentration by adding aliquots of standard to sample, removing the need for a separate calibration and minimizing matrix effects. This compact titrator is designed to
Benefits of Orion Star T930 Ion Titrator
|
| Specifications | |
| Titration Technique | Equivalence point or preset endpoint |
| Equivalence Points | 1 or 2 |
| Preset Endpoints | 1, 2 or 3 |
| Multiple Known Addition Points | Up to 5 |
| Titration Types | Direct or back titration |
| Blank Options | Fixed value or variable value using titration |
| Cycles Per Titration Run | Up to 5 cycles with option to exclude cycles from average results and RSD calculations |
| Titrant Determination | Standardization titration or manual concentration input |
| Titration Process Control | Routine, quick, careful or user defined |
| Titration Precision | ±0.5 % RSD, dependent on environment and handling conditions |
| Stirrer Probe Speeds | 5 selectable speeds, 250 to 3700 RPM |
| Sample ID | Auto-incremental, manual or off |
| Titration Setup Wizard | Yes, using Start a New Titration workflow |
| Methods | Up to 10 customizable methods with optional password protection |
| Methods Transfer | Import/export via USB flash drive, summary to computer software or compact printer |
| Data Logs | Sample titration, titrant standardization, calibration, direct measure – 100 data sets each |
| Data Log Export | CSV or Report (PDF) file, short or long format |
| Time and Date | Yes, with nonvolatile battery backup |
| Direct Measure Mode | Ion concentration with mV and temperature |
| ISE Range / Resolution / Relative Accuracy | 0.0001 to 19990 0.0001 minimum, 1 to 4 significant digits (user selectable) ±0.2 mV or ±0.05% of reading, whichever is greater |
| ISE Calibration Mode | 1 to 5 point |
| mV Range / Resolution / Relative Accuracy | -2000.0 to +2000.0 mV / 0.1 mV / ±0.2 mV |
| Temperature Range / Resolution / Relative Accuracy | -5.0 to 100.0 ºC; 23.0 to 212 ºF / 0.1 ºC; 0.1 ºF / ±0.2 ºC |
| Temperature Input | Manual or automatic with optional 1 point ATC probe offset calibration |
| Display Type | 5.7” color capacitive touchscreen, 640 x 480 resolution, with lab glove compatibility |
| Display Backlight | Yes, adjustable |
| Languages | Chinese, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Audible Notifications | Titration Cycle Complete, Maximum Titrant Volume, Data Log Full, Calibration Due, Maintenance Reminder |
| Updateable Firmware | Yes, using USB flash drive |
| Burette Sizes | 10 mL, 20 mL (included), 50 mL |
| Burette Resolution | Advanced micro-step technology provides 25,600 micro-steps per motor revolution for smooth and precise burette positioning (2 million micro-steps over full burette stroke range) |
| Burette Dosing Accuracy | Meets ISO8655-3 requirements |
| Burette Functions | Automatic rinse cycles for flushing and discrete dispense volume with continuous option |
| Certifications | CE, TUV 3-in-1, FCC, EN/IEC 61326-1, IEC 61010, IP-51 |
| Dimensions | 10” x 16” x 14” (L x W x H); 25.4 cm x 40.6 cm x 35.6 cm (L x W x H) |
| Weight | 12.5 lbs; 5.67 kg |
| Power Requirements | 100 to 240 V, 50/60 Hz |
| Warranty | 1 year |
| Catalog Number | Description | Includes |
| START9300 * | Orion Star T930 ion titrator without electrode | 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, computer cable, literature on USB drive, 110-240V power supplies |
| Orion Star T930 ion titrator salt content kit | 9780SC silver billet electrode, 91CBNC electrode cable, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, computer cable, literature on USB drive, 110-240V power supplies | |
| Orion Star T930 ion titrator sodium MKA kit | 8611BNWP ROSS sodium electrode, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, pint bottle cap, computer cable, USB drive, 110-240 V power supplies | |
| Orion Star T930 ion titrator ammonia MKA kit | 9512HPBNWP high performance ammonia electrode, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, pint bottle cap, computer cable, USB drive, 110-240 V power supplies | |
| Orion Star T930 ion titrator surfactant kit | 9342BN surfactant electrode, 900200 reference electrode, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, computer cable, USB drive, 110-240V power supplies | |
| Orion Star T930 ion titrator total hardness kit | 9720BNWP calcium electrode, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports and drying tube, computer cable, USB drive, 110-240V power supplies |
