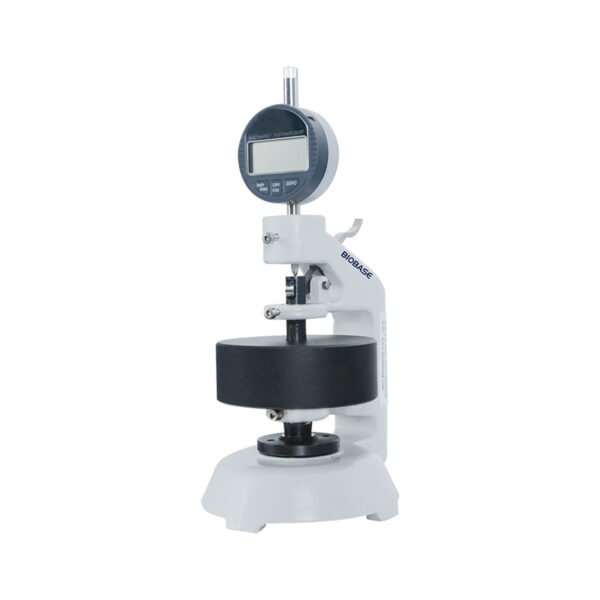

Paper Thickness Meter
Features:
1. No need to connect the power supply, convenient and fast.
2. Simple operation, high measurement accuracy.
Technical Parameter:
|
Model |
PTM-4 |
|
Measuring Range |
0~4mm |
|
Accuracy |
0.001mm |
|
Contact Pressure |
100±10 kPa |
|
Contact Diameter |
16.0±0.5 mm |
|
Error Of Depth of Parallelism |
0.005mm or 1% |
|
Indication Error |
±0.0025mm or ±0.5% |
|
Indication Variability |
≤0.0025mm or ≤0.5% |
|
External Size |
233*160*120mm |
|
Package Size |
200*200*200mm |
|
Net Weight |
5.5kg |
|
Gross Weight |
8kg |
