Penetration Extended Length K-Type Thermocouple Probe with Handle

Name: Penetration Extended Length K-Type Thermocouple Probe with Handle
Brand: Alat-Test.Com
SKU: c0e1e7e308ba
Availability: InStock
Rating: 5 (1 reviews)

★★★★★

SKU: c0e1e7e308ba Kategori : Electrodes

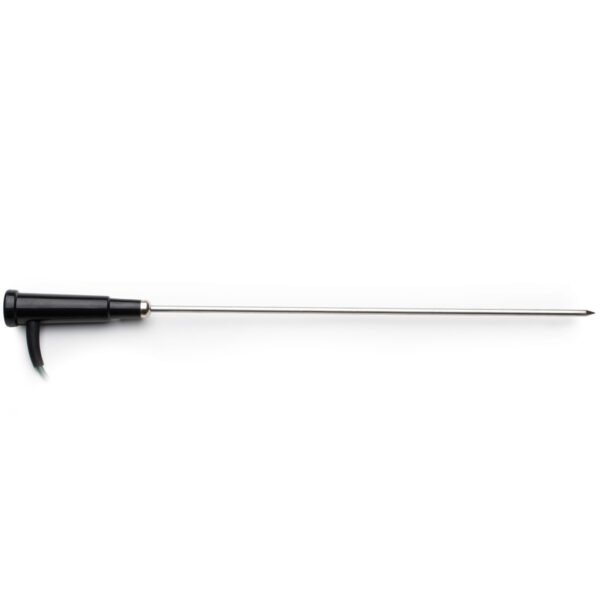

The HI766CL is an extended length penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The 310 mm length of the probe helps in the measurement of hard to reach samples; the sharp, pointed tip allows users to obtain highly accurate temperature readings of semi-solids and high-temperature samples.

Measures up to 900°C (1650°F)
15 second response time
Stainless steel

Info penawaran harga dan pemesanan hubungi:

Description

The Penetration Extended Length K-Type Thermocouple Probe with Handle – HI766CL is designed to measure the temperature of semi-solids and high-temperature samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766CL pointed tip construction offers a 15-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).

Specification Name	Detail
SKU	HI766CL
Recommended Operating Temperature	900°C (1650°F)
Response Time (90% of final value)	10 seconds
Body Length	L 310 mm x dia 5 mm (12.2″ x 0.2″)
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	meat, rubber, semi-solid products
Connection	K-Type
