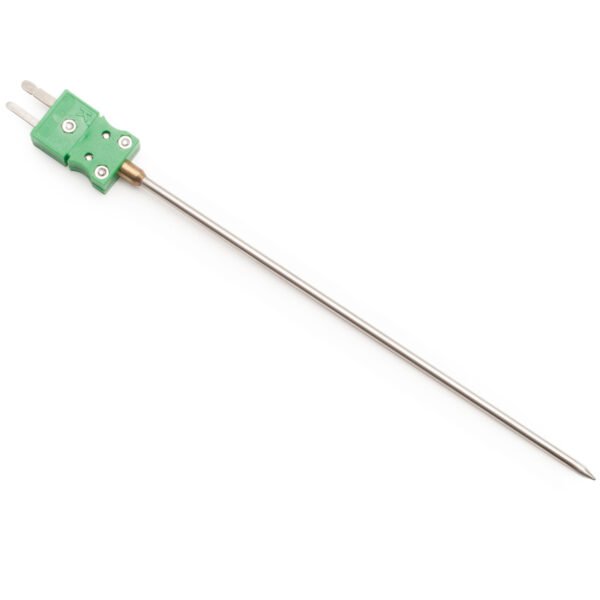

The Penetration K-Type Thermocouple Probe – HI766PC is designed to measure the temperature of semi-solids and high-temperature samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766PC pointed tip construction offers a 15-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).
| Specification Name | Detail |
|---|---|
| SKU | HI766PC |
| Recommended Operating Temperature | 900°C (1650°F) |
| Response Time (90% of final value) | 15 seconds |
| Body Length | L 150 mm x dia 3 mm (5.9″ x 0.12″) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Recommended Use | meat, rubber, semi-solid products |
| Connection | K-Type |
