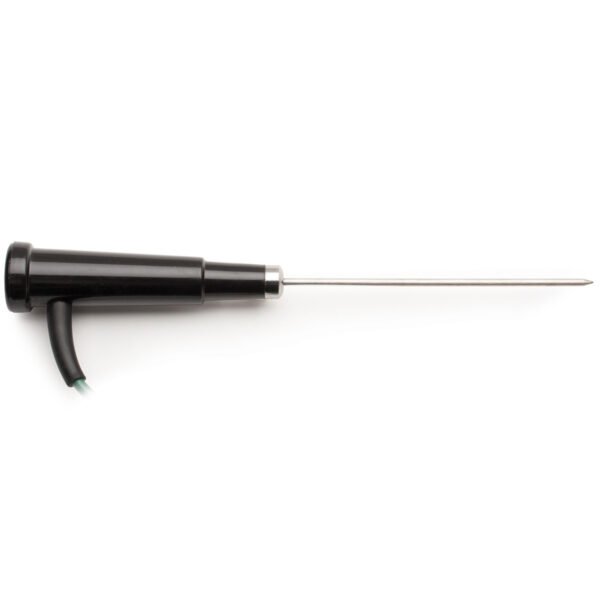

Penetration K-Type Thermocouple Probe with Handle

SKU : 6b10f6e53550

The HI766C is a penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The sharp, pointed tip of the probe allows users to obtain highly accurate temperature readings of semi-solids and high-temperature samples.

Measures up to 900°C (1650°F)
15 second response time
Stainless steel

Info penawaran harga dan pemesanan hubungi:

SKU 6b10f6e53550 Kategori : Electrodes

Description

The Penetration K-Type Thermocouple Probe with Handle – HI766C is designed to measure the temperature of semi-solids and high-temperature samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766C pointed tip construction offers a 15-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).

Specification Name	Detail
SKU	HI766C
Recommended Operating Temperature	900°C (1650°F)
Response Time (90% of final value)	15 seconds
Body Length	L 120 mm x dia 3 mm (4.7″ x 0.12″)
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	meat, rubber, semi-solid products
Connection	K-Type
