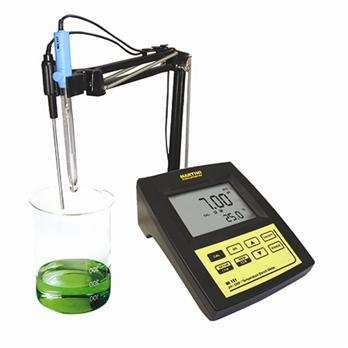

This high performance economy microprocessor-based pH/ORP/Temp Bench meter is an ideal tool in schools, laboratories and production plants.
It is provided with a series of new diagnostic features which add an entirely new dimension to the measurement of pH, by allowing the user to dramatically improve the reliability of the measurement:
- Automatic Temperature Compensation (ATC) for good accuracy under fluctuating temperatures;
- Hold Function freezes reading for easy viewing;
- Easy to read large custom LCD;
- Stability Indicator prompts whenever reading stabilizes;
- 7 memorized buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01 and 12.45) for calibration;
- Messages on the LCD to make the calibration easy and accurate;
- User-selectable “calibration time out” to remind when a new calibration is necessary.
Mi151 can also measure with ORP electrodes, thanks to its capability to measure mV with a resolution up to 0.1 mV. For accurate measurements, use the electrode holder supplied with the meter.
| pH Range | -2.00 to 16.00 pH |
| mV Range | ±699.9 mV / ±1999 mV |
| Temp Range | -20.0 a 120.0°C / -4.0 a 248.0°F |
| pH Resolution | 0.01 pH |
| mV Resolution | 0.1 mV / 1 mV |
| Temp Resolution | 0.1°C / 0.1 °F |
| mV Accuracy | ±0.2 mV / ±1 mV |
| pH Accuracy | ±0.01 pH |
| Temp Accuracy | ±0.4°C / ±0.8°F |
| pH Typical EMC Deviation | ±0.02 pH |
| mV Typical EMC Deviation | ±0.2 mV / ±1 mV |
| Temp Typical EMC Deviation | ±0.4°C / ±0.8°F |
| pH Automatic Calibration | 1 or 2 point-calibration, with 7 memorized buffers |
| Offset Calibration | ±1 pH |
| Slope Calibration | from 80 to 108% |
| Temperature Compensation | automatic, from -20.0 to 120.0°C / -4.0 to 248.0°F or manual, without temperature probe |
| pH Electrode | MA917B/1 (included) |
| Temperature Probe | MA831R (included) |
| Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
| Input Impedance | 1012 Ohm |
| Power Supply | 12 VDC power adapter (included) |
| Dimensions | 230 x 160 x 95 mm |
| Weight | 0.9 kg |
| Thomas No | Mfr No | Description |
|---|---|---|
| 1188H59 | Mi151-US | pH / ORP / Temperature Laboratory Bench Meter |
