Electrodes are filled with gel reference electrolyte under a pressure of 25 BAR pressure range from vacuum up to a process of max 36 PSI 25 BAR. Temperature range steam sterilization autoclave to 266F to 130C. In-Situ sterilization up to 100 cycles under standard conditions. Gel electrolyte eliminates fill requirements to reduce maintenance. Patented silver-ion trap prevents sulfide-bearing poisoning of the liquid junction increasing electrode life even in sulfide-bearing media suitable for direct insertion through compression fittings or top or side mounting in a stationary or retractable housing. Engraved serial number on each electrode for easy identification when working under GMP. Specifications:
- Ph Range 0-12
- Cable Connector K8s
- Sensor Thread Standard Metric Pg 135
- Fully Autoclavable Or In-Situ Sterilization For Hygienic Cip/ Sip
- Size: 12x425mm
| Thomas No | Mfr No | Description |
|---|---|---|

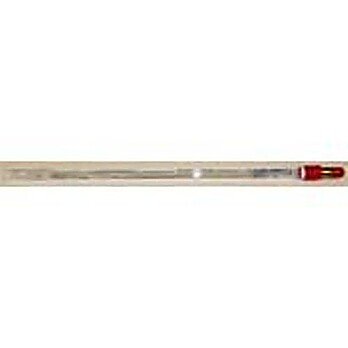

| 23A00N879 | 7803-21530 | pH Probe, 12x425mm Mettler |
