Across the Spectrum

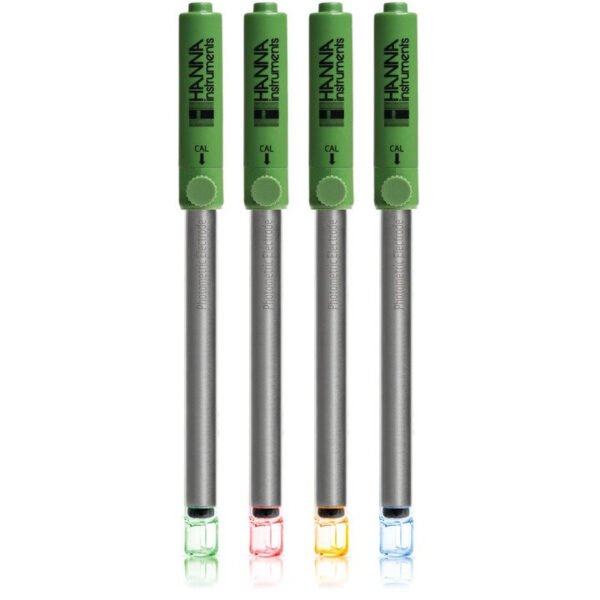

Adding to our titration line, these probes are available in 4 different wavelengths from 470 nm to 625 nm. The HI90060X family of photometric probes use the principle of absorbance at a specific wavelength to identify the equivalence point of a titration with the use of a color indicator.
Specialized Construction
A glass construction minimizes chemical compatibility issues. The stainless steel shield within the glass blocks out ambient light and protects against any grounding loop current that may result in progressive damage of the probe.
Made to Fit
With a 12 mm diameter and 120 mm standard insertion length, these photometric electrodes fit easily into electrode holders. These probes have a universal BNC connector that is used as a potentiometric input on Hanna titrators and autosamplers.
Reflective Measurement
Each probe has a LED at a specific wavelength that shines light through the sample and is reflected back by a platinum mirror sealed in the glass. The reflective measurement has a fixed path length and allows for high color sensitivity in a compact design.
Less Maintenance
With the photometric probe there is no fill solution to change in order for it to be compatible with a non-aqueous sample and there is no pH sensor to foul.
For Colorimetric Reactions
The use of a photometric probe for potentiometric titration can be used for a variety of complexometric titrations. The photometric probe is also ideal for non-aqueous titrations.
| Specification Name | Detail |
|---|---|
| sku | HI90060x |
| mV Range | 10 to 1100 mV |
| Wavelength / LED color | HI900601 @ 525 nm / green LED HI900602 @ 625 nm / red LED HI900603 @ 590 nm / yellow LED HI900604 @ 470 nm / blue LED |
| Light Source | LED |
| Measuring Cycle | LED pulsed at 1 kHz |
| Light Detector | silicon photocell |
| Sample Temperature | 0 to 75°C (32 to 167°F) |
| Body Material | glass |
| Body Length / Overall Length | 122 mm / 200mm |
| Outer Diameter | 12 mm |
| Connection | BNC with 1.5 meter cable for connecting to titrator or autosampler |
| Power supply | ps/2 connector for connecting to titration system |
| Environment | 0 to 50°C (32 to 122°F) |
| Ordering Information | Supplied with instruction manual and electrode quality testing certificate. |
