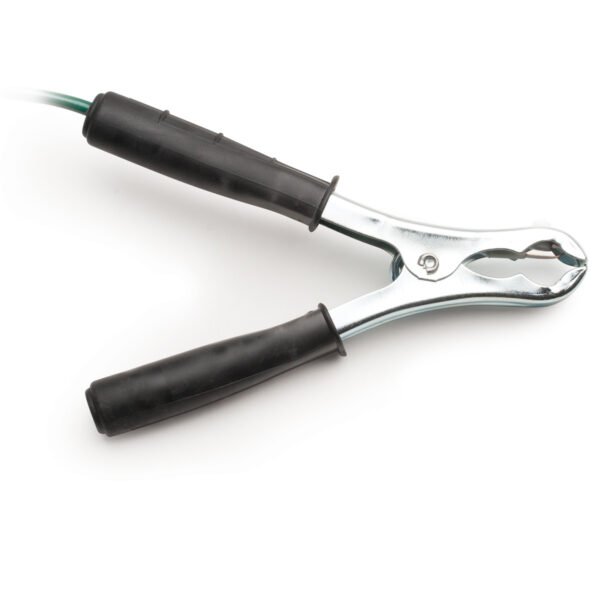

Pipe Clamp K-Type Thermocouple Probe

SKU : f3d21a7510c9

The HI766TV1 is a roller surface K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The sensor that is housed inside the clamp allows users to obtain highly accurate temperature readings of pipes and tubes.

Measures up to 200°C (390°F)
8 second response time
35 mm clamp opening

Info penawaran harga dan pemesanan hubungi:

SKU f3d21a7510c9 Kategori : Electrodes

Description

The Pipe Clamp K-Type Thermocouple Probe – HI766TV1 is designed to measure the temperature of pipes and tubes that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766TV1 clamp construction offers a speedy 8-second response for a temperature reading. With a 35 mm opening diameter of the pipe clamp, this probe is able to measure surfaces up to 200°C (390°F).

Specification Name	Detail
SKU	HI766TV1
Recommended Operating Temperature	200°C (390°F)
Response Time (90% of final value)	4 seconds
Body Length	Clamp opening max 35 mm (1.4″)
Temperature Sensor	yes
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	pipes, tubes
Connection	K-Type
