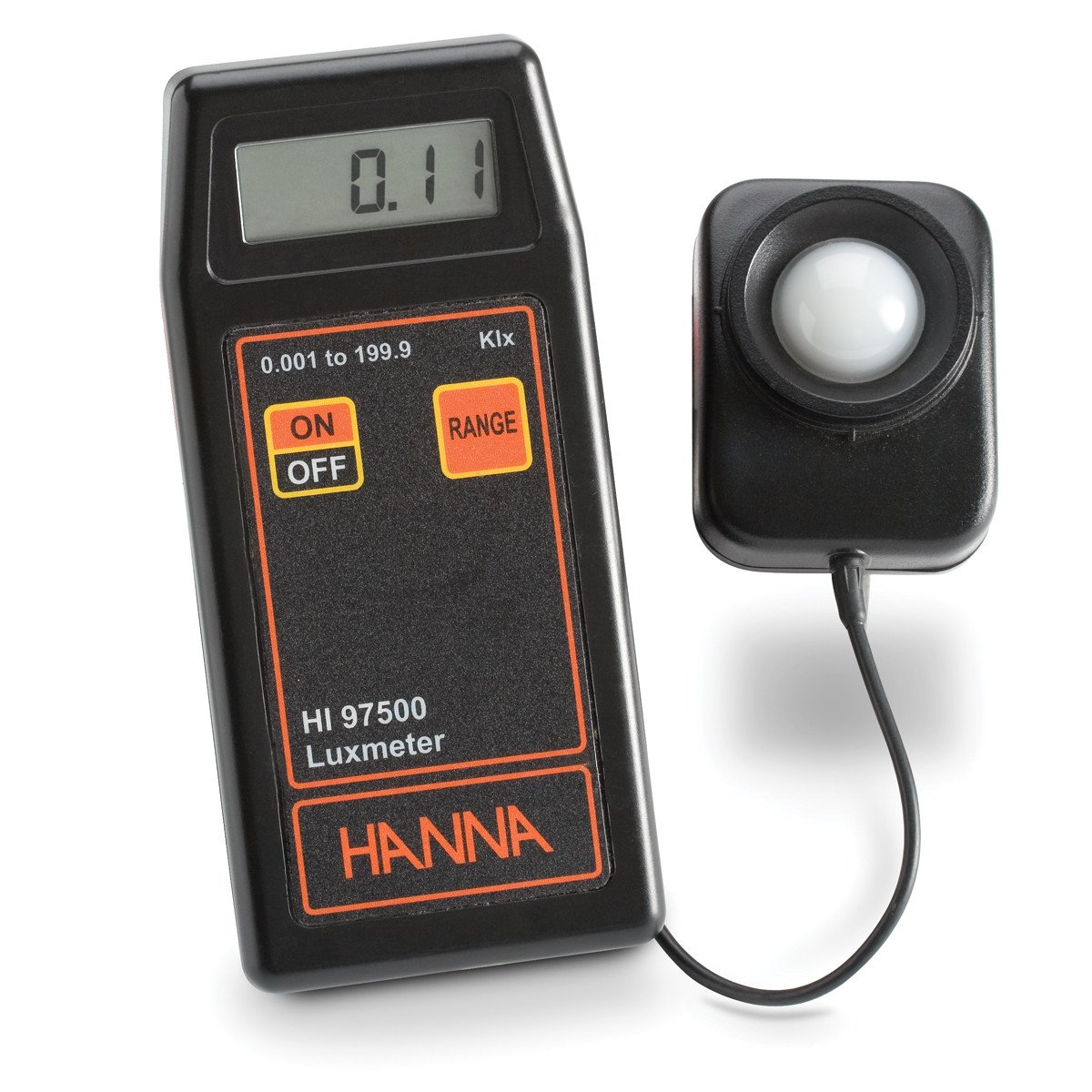

A lux meter can be used to measure illuminance, or the luminous flux, in a given area. The HI97500 is a portable lux meter designed to perform light measurements simply and accurately, housed in a rugged and water-resistant body for frequent outdoor use. The instrument is supplied with a light sensor connected by a fixed 1.5 m coaxial cable to allow measurements to be taken from a distance without any interference from the operator.
Features-at-a-Glance
Multiple Measurement Ranges – By simply pressing the RANGE key, users can switch among three ranges to choose the best resolution according to the environment being tested.
Auto-off Feature – To conserve battery life of the meter, HI97500 automatically turns off after 7 minutes of inactivity.
Low Battery Indicator – When the battery level is weak, a “V” symbol on the LCD blinks to indicate a low battery condition.
| Specification Name | Detail |
|---|---|
| sku | HI97500 |
| Range | 0.001 to 1.999 Klx; 0.01 to 19.99 Klx; 0.1 to 199.9 Klx |
| Resolution | 0.001 Klx; 0.01 Klx; 0.1 Klx |
| Accuracy (@25°C/77°F) | ±6% of reading ±2 digits |
| Light Detector | human-eye-response silicon photodiodewith 1.5m coaxial cable (fixed) |
| Calibration | factory calibrated |
| Power Supply | 1 x 9V alkaline batteries |
| Power Consumption | approx. 200 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); 100% RH |
| Dimensions | 164 x 76 x 45 mm (6.5 x 3.0 x 1.8″) |
| Weight | 180 g (6.3 oz.) |
| Ordering Information | Supplied with battery and instruction manual. |
| Warranty | 2 years |
