Probe Condition
An on-screen indicator provides visual confirmation that your probe is working at its best.
Low Battery Indicator
The included batteries provide 1400 hours of continuous use. When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
Automatic Shut-off
The auto-off feature can be set to shut the meter off at 8 or 60 minutes, or it can be disabled so that the meter continuously stays on. The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
Built to be Durable
Designed to withstand the knocks, drops, and spills of real life, the new IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.
Portable Design
Made to fit comfortably in your hand for on-the-go testing, the multilevel LCD display provides at-a-glance readings of pH and temperature from any angle and dual button operation streamlines the testing process for any user.
Quick Connect Probe
A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.

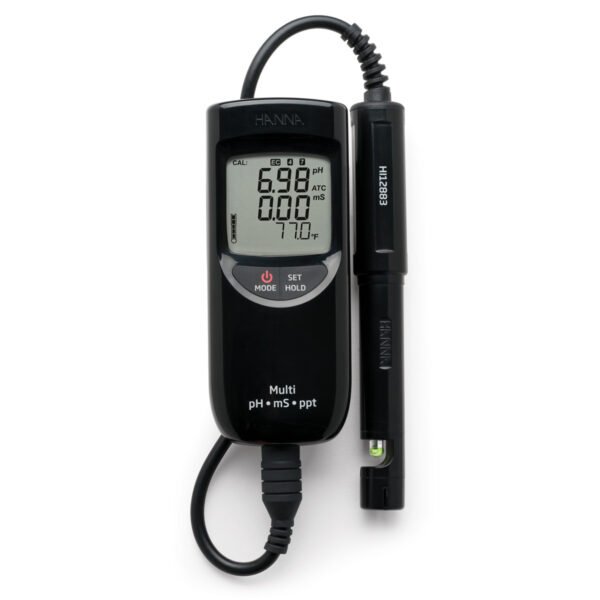

Your measurements require detailed attention; so should your electrode. The HI991301 pH/EC/TDS Meter features a replaceable HI12883 probe that has been carefully designed specifically for measurements encountered in manufacturing and environmental testing protocols.
Polypropylene Body
The polypropylene body of the HI12883 houses all three sensors within a sturdy, single body design. The plastic body protects the electrode from damage, is easy to clean, and is chemically resistant to many aggressive chemicals.
Pre-Amplified pH Electrode
The pH sensor in the probe is a single junction electrode with gelled electrolyte and a retractable cloth junction. When readings appear sluggish, simply pull out some of the cloth material from out from its position t renew the junction with an uncontaminated, fresh surface.
Amperometric EC/TDS Sensor
The EC/TDS portion is a two-ring probe that comes with the HI991301, offering an accurate solution for high range EC and TDS readings. An integrated temperature probe ensures fast, accurately compensated readings even during sudden temperature fluctuations.
We believe that buying a meter should be simple. Your Portable pH/EC/TDS Meter is equipped with everything you need for successful testing right out of the box.
General Electrode Cleaning Solution
Your Portable pH/EC/TDS Meter comes with a cleaning solution that has been engineered to keep your electrode free from debris and build up. This concentrated combination of detergents cleans your meter quickly and effectively so that your meter stays in optimum condition.
pH 4 & 7 Buffer Sachets
When performing a pH calibration it is important that the correct buffers are used. We include some start buffers to get you going. The single-use sachets are individually sealed so you use fresh buffer each time you calibrate.
12880 ?S/cm and 6.44 ppt Conductivity Standard (1 each)
When performing an EC/TDS calibration it is important that the correct standards are used. We include some starter standards to get you going. The single-use sachets are individually sealed so you use fresh buffer each time you calibrate.
HI991301 Models and Compatible Accessories
Old HI991301 (Left)
- Uses the HI1288D pH probe with DIN Connector
- Compatible with the HI710023 Shockproof Boot
New HI991301 (Right)
- Uses the HI12883 pH probe with Quick DIN Connector
- Compatible with the HI710028 Shockproof Boot
*The new Quick DIN probe connection is compatible with the old body design, however, the old DIN probe connections are not compatible with the new body design.
| Specification Name | Detail |
|---|---|
| sku | HI991301 |
| pH Range | -2.00 to 16.00 pH / -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH / 0.1 pH |
| pH Accuracy (@25°C/77°F) | ±0.02 pH / ±0.1 pH |
| pH Calibration | Automatic, 1 or 2 points choose between 2 sets of buffers (standard: 4.01; 7.01; 10.01 or NIST: 4.01; 6.86; 9.18) |
| mV Range | ±825 mV (pH-mV) |
| mV Resolution | 1 mV |
| mV Accuracy | ±1 mV (pH-mV) |
| Temperature Range | -5.0 to 105.0 °C / 23.0 to 221.0 °F |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| Temperature Accuracy (@25°C/77°F) | ±0.5 °C / ±1.0 °F Temperature |
| EC Range | 0.00 to 20.00 mS/cm** |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy (@25°C/77°F) | ±2% F.S. |
| EC Calibration | Automatic, one-point at 12.88 mS/cm |
| TDS Range | 0.00 to 10.00 ppt |
| TDS Resolution | 0.01 ppt (g/L) |
| TDS Accuracy (@25°C/77°F) | ±2% F.S. |
| TDS Conversion Factor | Selectable from 0.45 to 1.00 with 0.01 increments |
| TDS Calibration | Automatic, one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) |
| Temperature Compensation | pH – AutomaticEC/TDS – Automatic, with ? selectable from 0.0to 2.4 %/ °C with 0.1 increments |
| Power Supply | 1.5V AAA batteries(3 pcs.) |
| Power Consumption | approx. 600 hours of continuous use |
| Environment | 0 to 50 °C (32 to 122 °F) RH max. 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2” |
| Weight | 196 g (6.91 oz.) with batteries |
| Ordering Information | Each meter is supplied complete with: • HI12883 pH/EC/TDS probe with built?in temperature sensor, DIN connector and 1m (3.3’) cable • pH 4.01 & 7.01 Buffer sachet • HI70030 12880 ?S/cm and HI70038 6.44 ppt 1 sachet each for HI991301 • HI700601 Electrode cleaning solution (2 sachets) • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual |
| Warranty | 2 years |
| Recommended Probe | HI12973 pH/ORP/temperature probe with titanium body and DIN connector with 1m (3.3’) cable |
