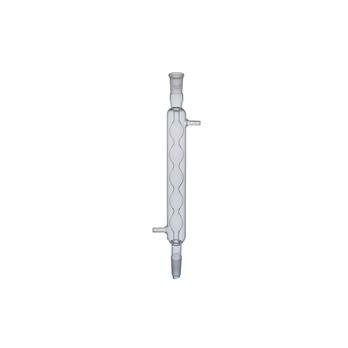

Allihn – suitable for use in vacuum distillations
- With condensing tube expanded by series of bulbs which increase condensing area and lengthen condensate path
- Inlet and outlet tubes are on opposite sides of the jacket
All sizes take stopper size 3 and have Standard Taper drip tip joint at bottom and Standard Taper outer joint at top. A widely used condenser with greater surface area than the corresponding Liebig type. Suitable for use in vacuum distillations. The tubulations have an o.d. of approximately 10 mm.
| Thomas No. | JACKET | No. of Bulbs | Ts Joints |
| 3216C25 | 8 | 3 | 19/38 |
| 3216C35 | 12 | 5 | 24/40 |
| 3216C45 | 16 | 6 | 24/40 |
| 3216C55 | 20 | 8 | 24/40 |
| 3216C65 | 24 | 10 | 29/40 |
| Thomas No | Mfr No | Description |
|---|---|---|
| 3216C25 | 2480-200 | Condenser 200-mm |
| 3216C35 | 2480-300 | Condenser 300-mm |
| 3216C45 | 2480-400 | Condenser 400-mm |
| 3216C55 | 2480-500 | Condenser 500-mm |
| 3216C65 | 2480-600 | Condenser 600-mm |
