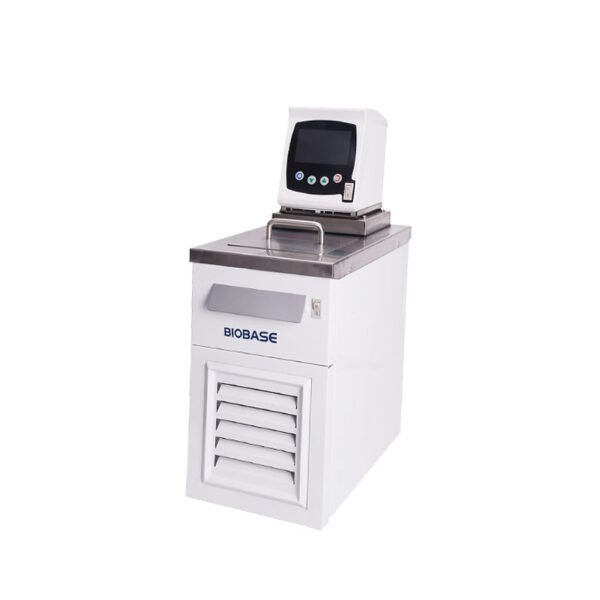

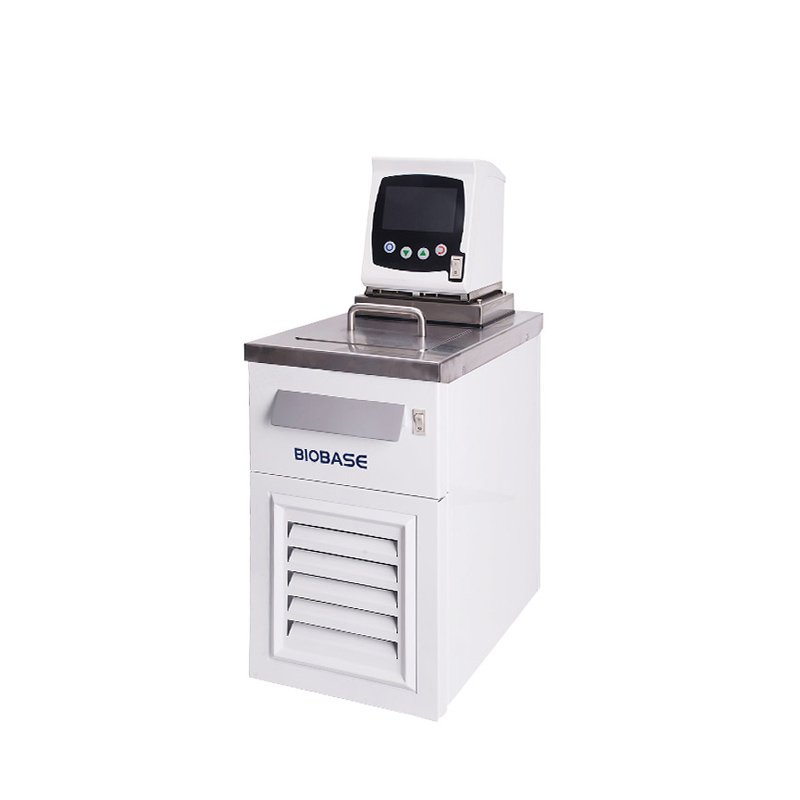

Refrigerated and Heating Circulator

SKU : 7d1b442cb0ca

Brand BIOBASE

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Refrigerated and Heating Circulator can be widely used in oil, physical, chemical, pharmaceutical, environmental protection and other fields of science, precision temperature control equipment.
Application:
Experiment that need heating and cooling, Fermentation Tank, Polarimeter, Refractometer, Spectrophotometer, Electrophoresis System, Chromatographic Column, Viscometer, Rotation Evaporation Instrument, Rheometer.

Pemesanan dapat melalui :
SKU 7d1b442cb0ca Kategori :
Share this :

Deskripsi

Refrigerated and Heating Circulator

Features:

LCD display

Robust water tank: ultra-slushing and rust-proof

Low Noise design: use high quality compressor and mute pump.

Convenience function: Parameters memory function, temperature correction.

PID temperature control system: control temperature stability accurately

and fast.

Multi-protection: Over-current protection, high and low temperature warning

functions, dry-running protection.

ECO-refrigerant R134a and high quality compressor guarantee the cooling

system ecofriendly and powerful

Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water.


Technical Parameters:

Model

BKL6-05

BKH6-05

BKL6-20

BKH6-20

Working Temp. Range

-5°C ~ 100°C

-5°C ~ 200°C

-20°C ~ 100°C

-20°C ~ 200°C

Temp. Control

PID

Temp. Stability

±0.03°C

Temp. Sensor

PT100

Display Resolution

0.1 °C

Heater Consumption

2000 W

Cooling Consumption

250W

Refrigerant

R134a

Pump Capacity Pressure

0.35bar

Pump Flow Rate

10L/min

Ambient Temp.

-20 ~ 70°C

Filling Volume

6L

Power Supply

AC220V±10%, 50Hz

Bath Opening(W*D)

160*160mm

Bath Dimensions(W*D*H)

320*180*150mm

External Size(W*D*H)

400*250*650mm

Package Size(W*D*H)

590*420*930mm

Gross Weight

43.5kg
