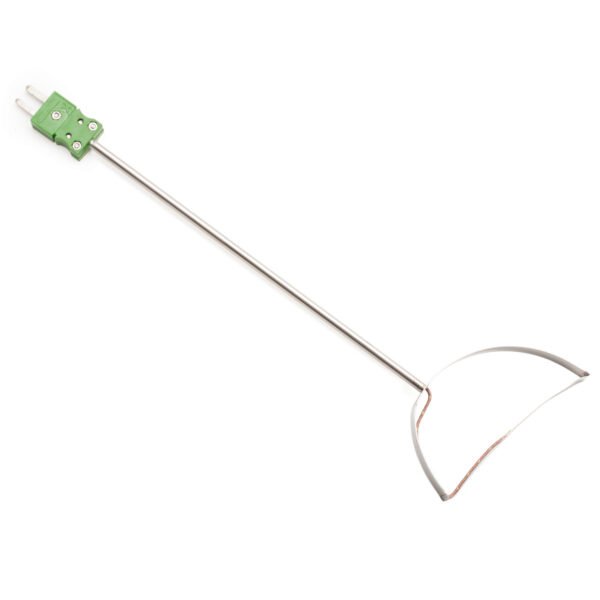

The Roller Surface K-Type Thermocouple Probe – HI766PA is designed to measure the temperature of convex and other curved surfaces that may be difficult to measure. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766PA roller surface construction offers a speedy 7-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 320°C (600°F).
| Specification Name | Detail |
|---|---|
| SKU | HI766PA |
| Recommended Operating Temperature | 320°C (600°F) |
| Response Time (90% of final value) | 5 seconds |
| Body Length | L 280 x 100 mm (11″ x 3.9″) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Recommended Use | convex surfaces, moving rollers |
| Connection | K-Type |
