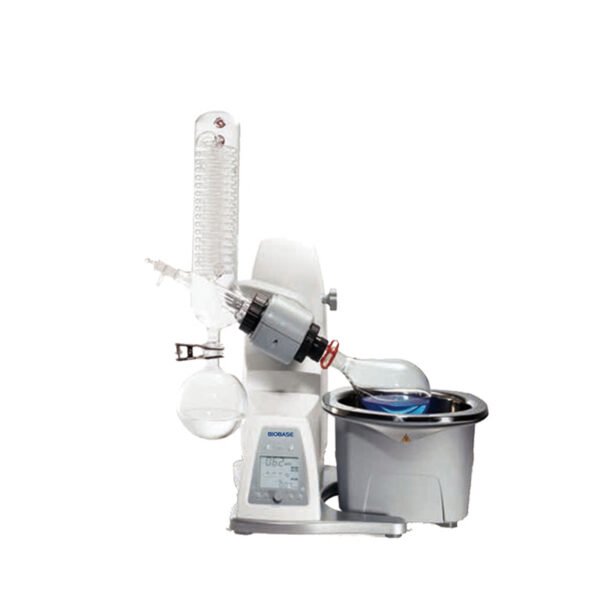

Rotary Evaporator (New Design) RE 100-Pro
Technical Parameters:
|
Model |
RE 100-Pro |
|
Item No. |
6030110111 |
|
Evaporating Flask |
1L(NS 29/32, 18300120 ) |
|
Receiving Flask |
1L(KS 35/20,18300110) |
|
Display |
LCD |
|
Rotating Speed |
20~280rpm |
|
Temp. Range |
RT 〜180°C |
|
Temp. Accuracy |
Water bath： ±1°C;Oil bath： ±3°C |
|
Lift |
Motor |
|
Stroke Height |
150mm |
|
Timing Range |
1~999min |
|
Motor |
DC brushless motor |
|
Heating Power |
1300W |
|
Stroke Displacement |
Automatic 150mm |
|
Protection Class |
IP20 |
|
Rotation |
Reversible Direction |
|
Interface |
USB |
|
Power |
1400W |
|
Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
|
External Size(W*D*H) |
465*457*583 mm |
|
Package Size(W*D*H) |
640*1100*650mm |
|
Net Weight |
15kg |
|
Gross Weight |
36kg |
|
Standard Accessory |
Condenser(1700cm2)*1, 1L Evaporating flask* 1, 1L Receiving flask* 1, 5L pot*1 |
|
Optional Accessory |
Vacuum pump, Recirculating chiller |
