Round Surface K-Type Thermocouple Probe with Handle

SKU : 30741f140459

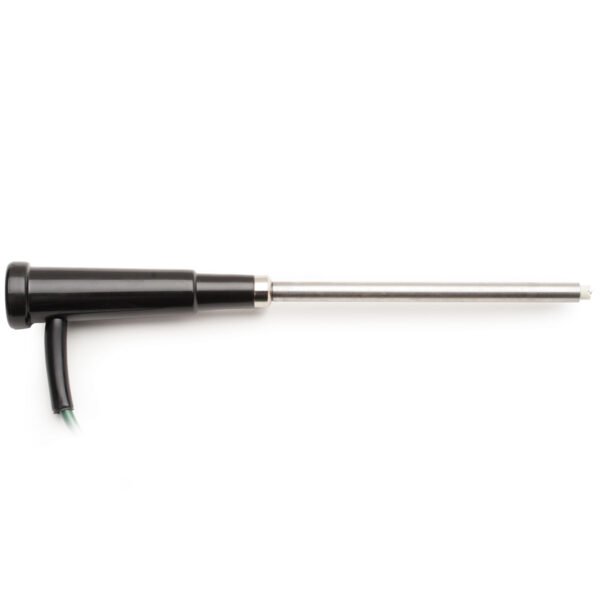

The HI766B2 is a round surface K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A cable extends 1 m (3.3′) from the handle to the thermocouple connector with the meter. The spring-loaded, 8 mm diameter surface of the probe allows users to obtain highly accurate temperature readings of furnaces, molds, and other high temperature, round surfaces.

Measures up to 900°C (1650°F)
3 second response time
Spring-loaded sensor

Info penawaran harga dan pemesanan hubungi:

SKU 30741f140459 Kategori : Electrodes

Description

The Round Surface K-Type Thermocouple Probe with Handle – HI766B2 is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766B2 surface construction offers a remarkably quick 3-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 900°C (1650°F).

Specification Name	Detail
SKU	HI766B2
Recommended Operating Temperature	900°C (1650°F)
Response Time (90% of final value)	5 seconds
Body Length	L 130 mm x dia 8 mm ( 5.1″ x 0.3″)
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3′)
Recommended Use	furnaces, hot solids, molds, round surfaces
Connection	K-Type
