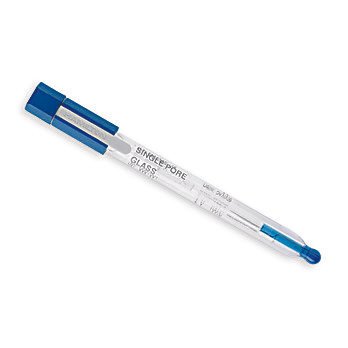

Single Pore Glass pH Electrodes

Using Hamilton’s patented Single Pore design, the Single Pore Glass has the highest accuracy and fastest response time. Widely applicable, it is great for use in emulsions, ion-weak media or general laboratory applications.

Benefits

• Highest accuracy and fast response time thanks to the patented Single Pore
• Robust design for easy cleaning
• Wide applicability, use for emulsions, ion-weak media or general laboratory applications
• Reported by PTB to be the most accurate laboratory electrode tested
• Minimal alkali error
• Serial number, certificate

a-length: 120 mm

Electrical Connector: S7

Measurement Principle: Combination electrode; pH potential measured against reference

Measuring Range: pH 0 to 14

Sensitivity: 57 to 59 mV / pH at 25 °C

Zero Point: 0 ± 20 mV

pH Glass: Hamilton Type H Glass

pH Glass Resistance: Moderate

Membrane Shape: Spherical

Diaphragm: Single Pore

Number of Diaphragms: 1

Electrolyte: Skylyte-CL

Reference System: Hamilton Everef

Temperature Sensor: No

Diameter: 12 mm

Wetted Parts: Glass, Ceramic

Serial Number: Yes

Recommended Storage: Hamilton Storage Solution or 3 M KCl

Certificate: Yes, with measured values in Buffer pH 4.01 and pH 7.00

Operating Temperature Range: 0 to 100 °C

Pressure Range bar g: Atmospheric pressure
