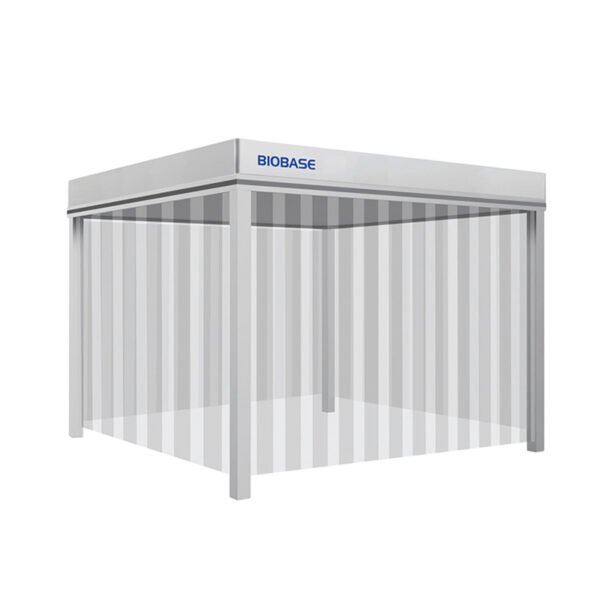

Small Class 1000 Customization Available Cleaning Clean Room Booth
Clean booth is a kind of rapidly-established simple clean room with a variety of cleanliness level and space collocation. It can be designed according to the user’s demand, is also a kind of movable sample purification device with small investment and high purification. Place the fan cabinet on an aluminum profile holder, and seal it tightly, the surrounding of which is covered with anti-static curtain / anti-static plexiglass, and the bottom of the surrounding adopts positive pressure natural
exhaust and other forms, making the cleanliness in the clean booth reach 100-300000 level. At present, it is widely used in clean and sterile operating environment of electronics, biotechnology, medicine, food, precision instruments and other industries, to provide local high-cleanliness working environment.
Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Models:
Model |
BKCB-1500 |
BKCB-2000 |
BKCB-3000 |
BKCB-5000 |
External Size (W*D*H) |
2000*1500*2530mm |
3000*2000*2530mm |
4000*3000*2530mm |
5000*5000*2530mm |
Internal Size(W*D*H) |
1920*1380*2140mm |
2920*1880*2115mm |
3880*2880*2095mm |
4880*4880*2095mm |
HEPA Filters |
99.999% efficiency at 0.3 μm |
|||
Consumption |
800W |
1500W |
2800W |
5000W |
FFU Nos. |
4pcs |
6pcs |
12pcs |
25pcs |
Clean Level |
ISO 5 (Class 100), Class A |
|||
Control System |
Microprocessor control system |
|||
Rectangular Tube Material |
Aluminium alloy |
|||
Wall Material |
Anti-static dust-proof curtain |
|||
Blower |
Built-in centrifugal blower; Speed adjustable |
|||
UV Lamp |
40W |
40W*2 |
40W*3 |
40W*5 |
Emission of 253.7nanometers, with UV timer |
||||
Illuminating Lamp |
16W*1 |
16W*2 |
16W*3 |
16W*5 |
LED Lamp,Illumination :≥500lux |
||||
Air Velocity |
0.1~0.6m/s, average 0.45m/s |
|||
Noise |
≤75db |
|||
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|||
Gross Weight |
390Kg |
670Kg |
1100Kg |
2900Kg |
Net Weight |
355kg |
625kg |
1020kg |
2800kg |
Package Size (W*D*H) |
2110*930*920mm 2280*660*500mm |
3080*980*1280mm 3080*660*550mm |
3080*980*1280mm*2 4080*660*550mm |
4080*980*1280mm*3 1260*660*1280mm 5080*460*500mm |
Customized design for clean level, size or material is available |
