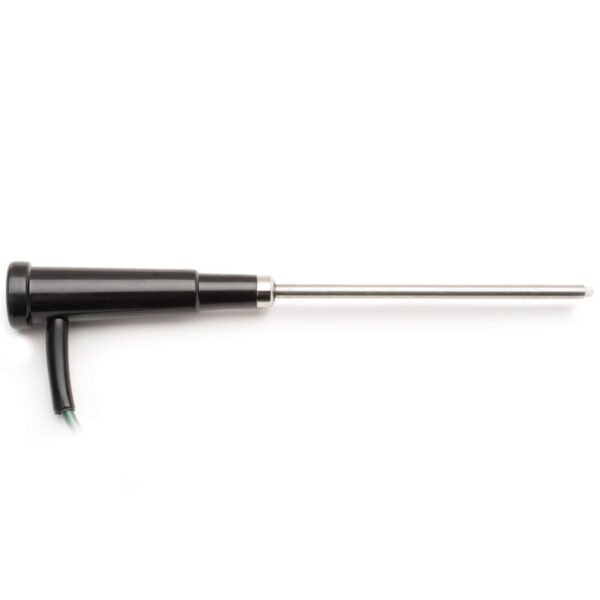

The Small Surface K-Type Thermocouple Probe with Handle – HI766B3 is designed to measure the temperature of small surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766B3 surface construction offers a speedy 6-second response for a temperature reading. With an insulated shaft constructed from strong, corrosion-resistant, stainless steel, this probe is able to measure surfaces up to 200°C (390°F).
| Specification Name | Detail |
|---|---|
| SKU | HI766B3 |
| Recommended Operating Temperature | 200°C (390°F) |
| Response Time (90% of final value) | 6 seconds |
| Body Length | L 130 mm x dia 8 mm ( 5.1″ x 0.3″) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Cable | polyurethane (PUR)/coiled; 1 m (3.3′) |
| Recommended Use | small surfaces |
| Connection | K-Type |
