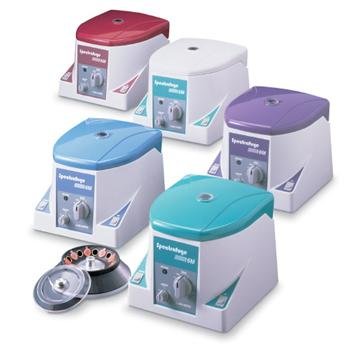

Spectrafuge
- Small footprint
- Max. speed: 14,000 rpm/16,000 x g
- Unique airflow pattern keeps samples cool
- Cold room compatible
Well-suited to a variety of applications including microfiltration and separation of proteins and nucleic acids. Motor is extremely quiet and generates a minimal amount of heat while running. Brushless design eliminates changing brushes and carbon dust emissions while providing fast acceleration and deceleration of rotor. Ducting system supplies a continuous flow of ambient air to the rotor chamber to keep the rotor cool and to prevent significant rises in sample temperature. Complete and ready to operate unit includes a 18 x 1.5/2.0 mL rotor. Adapters are available for 500, 450, 250 and 200 µL cycling tubes.
| SpecificATIONS | Spectrafuge | Spectrafuge w/ StripSpin |
| Max. Speed/RCF: | 14,000 rpm/16,000 x g | 14,000 rpm/9,400 x g |
| Acceleration to Max. Speed: | 10 seconds | 10 seconds |
| Deceleration to Max. Speed: | 9 seconds | 9 seconds |
| Max. Radius for 1.5/2.0 mL | 7.3 cm | 7.3 cm |
| Timer: | 1 to 30 min. or Hold | 1 to 30 min. or hold |
| Dimensions (W x D x H, inches): | 8.25 x 8.9 x 7 | 8.25 x 8.9 x 7 |
| Weight: | 10 lbs. | 10 lbs. |
| Electrical Requirements | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
| Thomas No | Mfr No | Description |
|---|---|---|
| 2508Y50 | C0160 | Spectrafuge, 120V, Gray |
| 1148W44 | C0160-230V | Spectrafuge, 230V, Gray |
| 2508Y54 | C0160-R | Spectrafuge, 120V, Red |
| 2508Y55 | C0160-B | Spectrafuge, 120V, Blue |
| 2508Y56 | C0160-T | Spectrafuge, 120V, Teal |
| 2508Y57 | C0160-P | Spectrafuge, 120V, Purple |
| 2499Z19 | C1205 | Individual Adapters For 0.5 / 0.6 Ml Tubes |
| 2499Z23 | C1222 | Individual Adapters For 0.2 ml Tubes |
| 2499Y93 | C1206 | Adapter Set For 0.4 ml Tubes |
