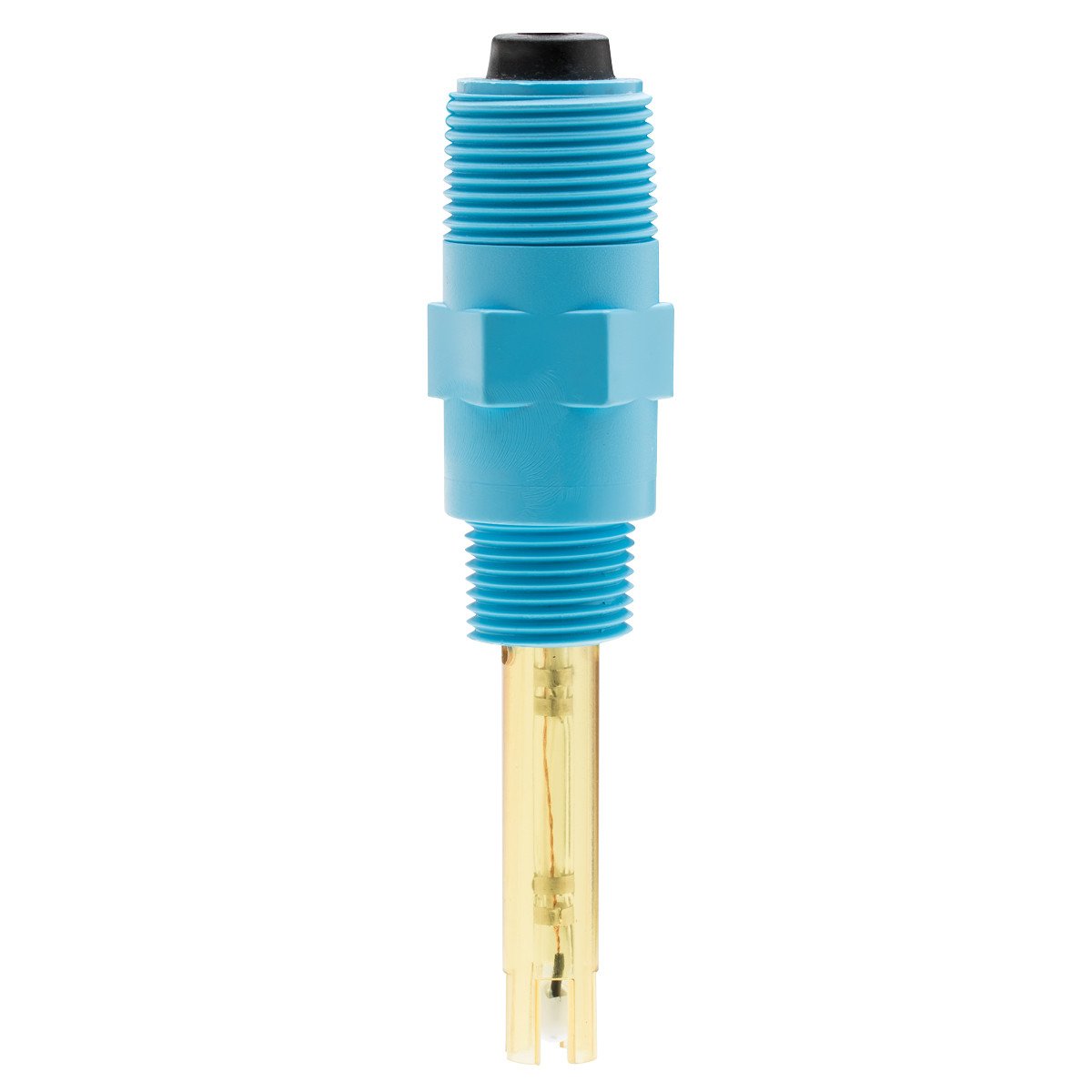

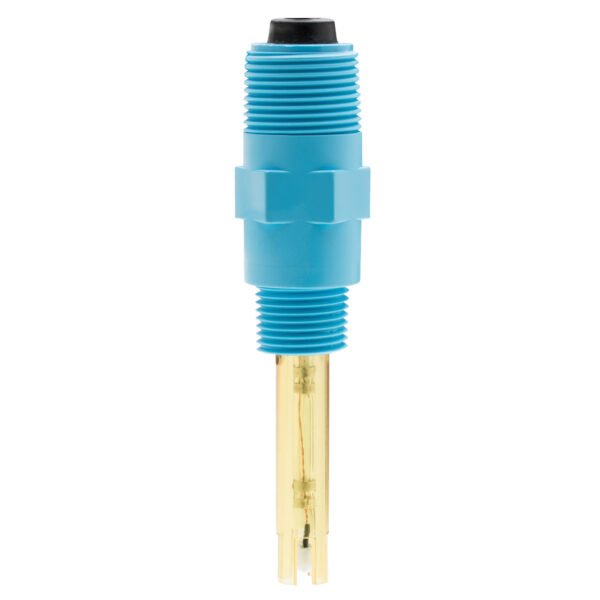

Submersion conductivity probe
Suitable for direct immersion in vats and tanks.
Four-ring method
Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
NTC sensor
Provide accurate and effective temperature compensation.
DIN connector
Standard ½” external thread on the front for flow-thru mounting and ¾” threads on the back for submersion or pipe mounting.
PEI protective cover
Can be removed for quick maintenance.
| Specification Name | Detail |
|---|---|
| SKU | HI3002 |
| Body | PEI, PVDF |
| Glass Type | (0 to 80°C/ 32 to 176°F) |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | Yes |
| Temperature Sensor Type | NTC Sensor |
| Temperature Compensation | Automatic, 0 to 60°C |
| Max Pressure | 6 bar (87 psi) |
| Cable | 3m |
| Length | 129mm |
| Warranty | 6 months |
