Features:
* BKC-TH18I: two-stage shock absorption.
BKC-TH21WC: multi-stage shock absorption.
* OLED screen display, speed, time, centrifugal force, speed, centrifugal time intuitive display.
* Embedded microcomputer processor for precise control.
* Intelligent induction door lock, emergency unlock function and overspeed, imbalance protection.
* DC brushless motor, no dust pollution, maintenance-free.
* The body adopts high quality steel, the middle layer is equipped with explosion-proof protective sleeve,
built-in stainless steel ventricle, three layers of protection, safe and reliable.
Application：
BKC-TH18I is suitable for medical, bio-pharmaceutical, agricultural science, environmental protection and other scientific research units, university laboratories.
BKC-TH21WC is widely used in centrifugal applications of molecular biology, clinical medicine, genetic biology, protein nucleic acid and PCR experiments.
Technical Parameter:
|
Model |
BKC-TH18I |
BKC-TH21WC |
|
Max.Speed |
18500rpm |
21000rpm |
|
Max.RCF |
23900×g |
30900×g |
|
Max.Capacity |
6*50ml |
|
|
Speed Precision |
±1% or ±20rpm |
|
|
Time Range |
1~999min |
|
|
Power Supply |
Standard: AC220V 50/60Hz Optional: AC110V 50/60Hz |
|
|
Consumption |
500W |
600W |
|
Noise |
≤65dB(A) |
|
|
External Size(L*W*H) |
510*360*300mm |
490*350*280mm |
|
Package Size(L*W*H) |
570*420*360mm |
550*410*340mm |
|
Net/Gross Weight |
39kg/41kg |
25kg/27kg |

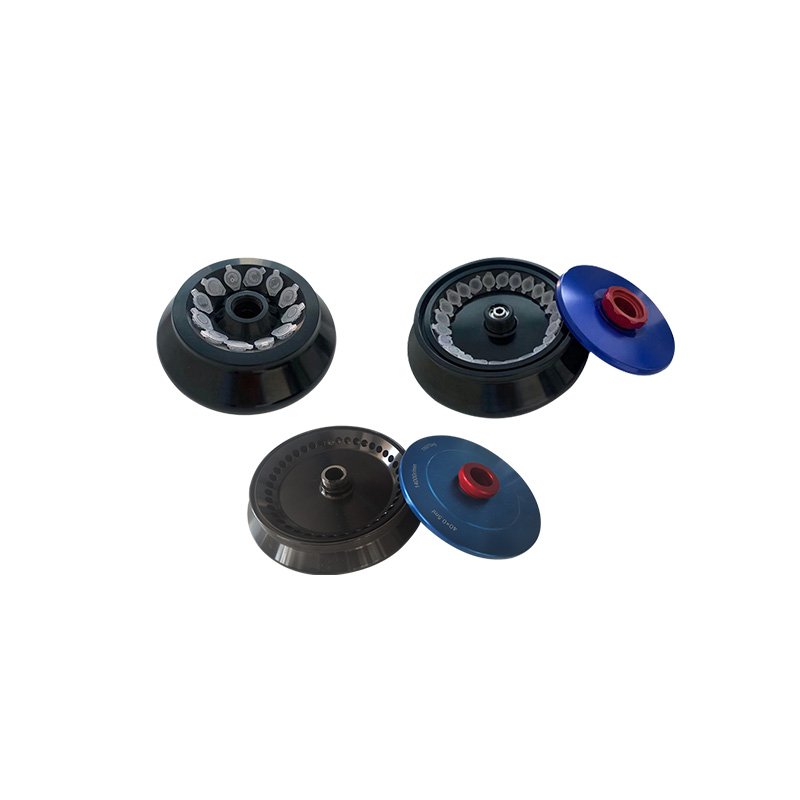

Rotor :
|
Model |
BKC-TH18I |
BKC-TH21WC |
||||||
|
NO. |
Capacity |
Max.Speed (rpm) |
Max.RCF (×g) |
NO. |
Capacity |
Max.Speed (rpm) |
Max.RCF (×g) |
|
|
Angle Rotor |
NO.1 |
12*1.5/2.0ml |
18500 |
23990 |
NO.1 |
12*1.5/2.0ml |
21000 |
30900 |
|
NO.2 |
24*1.5/2.0ml |
14000 |
20600 |
NO.2 |
24*1.5/2.0ml |
17000 |
26460 |
|
|
NO.3 |
10*5ml |
14000 |
16370 |
NO.3 |
30*1.5/2.0ml |
13500 |
19340 |
|
|
NO.4 |
12*10ml |
12000 |
14510 |
NO.4 |
48*1.5/2.0ml |
13000 |
17930 |
|
|
NO.5 |
6*50ml |
11000 |
13480 |
NO.5 |
12*10ml |
16000 |
21500 |
|
|
NO.6 |
30*0.5ml |
15000 |
18510 |
NO.6 |
30*0.5ml |
15000 |
18510 |
|
