Introduction:

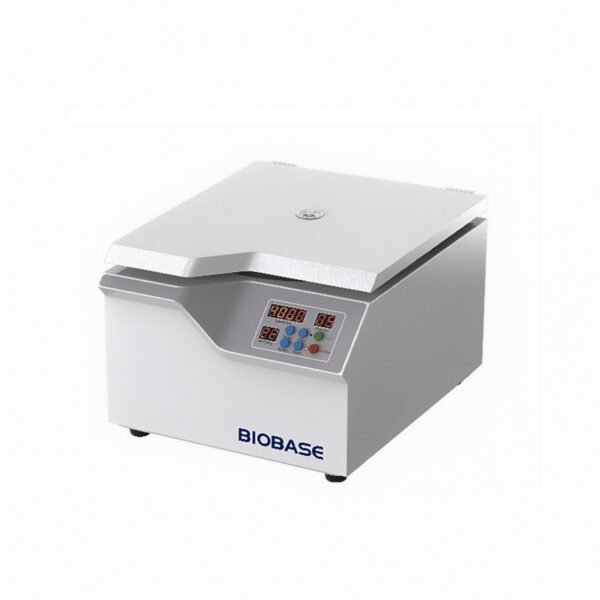

BKC-TL4B is a microcomputer controlled table top low speed automatic balance centrifuge, the machine is made of steel body, the surface is sprayed with plastic processing, so the rigidity is good, high strength, and novel shape, beautiful appearance, it has the advantages of low noise, low temperature rise, safety and reliability.The machine adopts DC brush maintenance-free motor drive, microcomputer control, door cover protection, so that your operation is safer, more convenient, more reliable.
Application：
It can be widely used in the separation of particles of different density at single temperature in scientific research laboratory and production of radioimmunity, biochemistry, pharmacy and so on.
Features:
* The whole machine adopts steel structure and stainless steel centrifugal chamber.
* Embedded microprocessor control, DC brushless motor drive, maintenance-free, smooth operation.
* Push-button programming design, digital tube display, real-time display of all operating parameters, intuitive and simple operation.
* Alarm monitoring function, real-time monitoring of lock and motor status, safe and reliable operation.
* Centrifugal speed, centrifugal time and other parameters can be set, and real-time display of centrifugal force.
* Equipped with a variety of Angle rotors, to meet different test requirements, a multi-purpose machine.
Technical Parameters:
|
Model |
BKC-TL4B |
|
Max. Capacity |
6*50ml |
|
Max. Speed |
4000rpm |
|
Max. RCF |
2250×g |
|
Timing Range |
1~99min |
|
Speed Precision |
±2% |
|
Noise |
≤65dB |
|
Consumption |
150W |
|
Power Supply |
AC220V, 50Hz 5A |
|
External Size(L*W*H) mm |
450*370*280 |
|
Net Weight(kg) |
18 |
|
Package Size(L*W*H) mm |
470*400*375 |
|
Gross Weight(kg) |
22 |

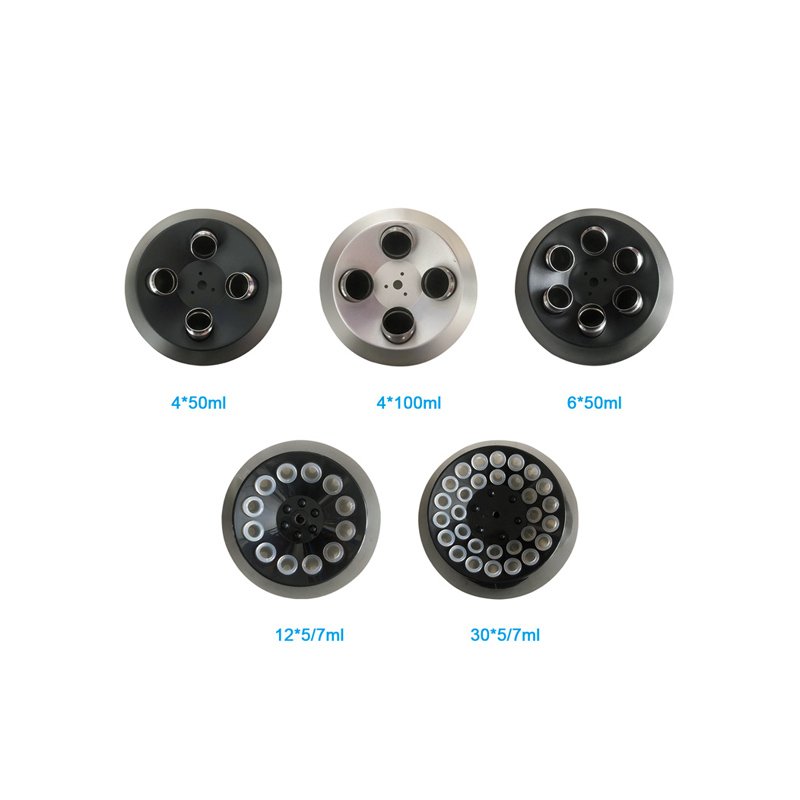

Rotor:
|
No. |
Rotor |
Capacity |
|
4M0001 |
Angle Rotor |
6*50ml |
|
Adapter |
6*20ml,6*15ml,6*10ml,6*5ml，6*1.5ml |
|
|
4M0002 |
Angle Rotor |
4*50ml |
|
Adapter |
4*20ml,4*15ml,4*10ml,4*5ml，4*1.5ml |
|
|
4M0003 |
Angle Rotor |
12*20ml |
|
Adapter |
12*15ml,12*10ml,12*5ml，12*1.5ml |
|
|
4M0004 |
Angle Rotor |
12*15ml |
|
Adapter |
12*1.5ml |
|
|
4M0005 |
Angle Rotor |
8*15ml |
|
Adapter |
8*1.5ml |
|
|
4M0006 |
Angle Rotor |
24*10ml |
|
Adapter |
24*1.5ml |
|
|
4M0007 |
Angle Rotor |
18*10ml |
|
Adapter |
18*1.5ml |
|
|
4M0008 |
Angle Rotor |
12*10ml |
|
Adapter |
12*1.5ml |
|
|
4M0009 |
Angle Rotor |
12*1.5ml/2ml |
|
Adapter |
12*0.5ml; 12*0.2ml |
