Features:
1. 5-inch high-definition touch screen, easily operated, visual display
2. Automatically identify 4 kinds of different rotors, eliminate hidden danger brought by users’ maloperation
3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect
4. Available to store 20 series of procedure for users to adjust
5. AC frequency conversion motor, high precision of rotary speed control.
6. Diverse protection setting: overspeed, door protection, imbalance protection, to ensure safety of both human and machine
7. Free conversion between rotary speed and centrifugal force
Model：
|
Model |
BKC-TL5LII |
|
Max. Speed |
5500rpm |
|
Max. RCF |
43900×g |
|
Max. Capacity |
4*500mL |
|
Motor |
AC frequency conversion motor |
|
Speed Accuracy |
±30r/min |
|
Time Range |
Centrifugal time:1min～99 min59sec Continuous centrifuge: Hold |
|
Power Supply |
AC220±22V 50/60Hz (Standard); 110V 60Hz (Optional) |
|
Noise |
< 60dB(A) |
|
External Size (L*D*H) |
450*620*380mm |
|
Net Weight |
55kg |
|
Package Size (L*D*H) |
800*520*570mm |
|
Gross Weight |
70kg |

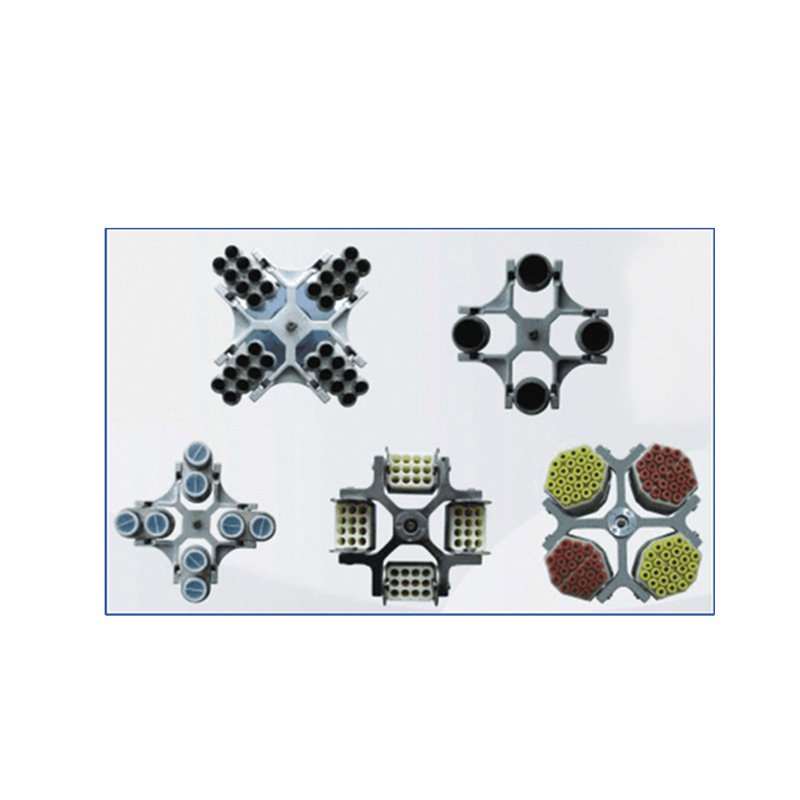

Rotor
|
No. |
Rotor |
Capacity |
Speed(rpm) |
RCF (xg) |
Dimension of Tube (mm) |
|
No.1 |
Angle Rotor |
12*10/15ml |
5500 |
4390 |
Φ16*83/Φ17*118 |
|
NO.2 |
Swing Rotor
|
4*2*100ml |
4000 |
2810 |
Φ37.5*123 |
|
4*100ml |
4000 |
2810 |
Φ37.5*123 |
||
|
4*2*50ml |
4000 |
2810 |
Φ29*107 |
||
|
4*50ml |
4000 |
2810 |
Φ29*107 |
||
|
4*8*15ml |
4000 |
2810 |
Φ17*118 |
||
|
4*6*15ml |
Φ17*118 |
||||
|
4*4*15ml |
Φ17*118 |
||||
|
NO.3 |
Swing Rotor
|
4*250ml |
4200 |
3500 |
Φ62*110 |
|
NO.4 |
Swing Rotor
|
4*500ml |
4000 |
3040 |
Φ80*137 |
|
NO.5 |
Microplate Rotor |
4*2*96well |
4000 |
2670 |
Microplate |
|
NO.7 |
Microplate Rotor |
2*2*96well |
4200 |
2360 |
Microplate |
|
NO.8 |
Swing Rotor
|
4*37*5ml |
4000 |
3200 |
RIA tube |
|
NO.9 |
Swing Rotor
|
4*30*7ml |
4000 |
3200 |
RIA tube |
