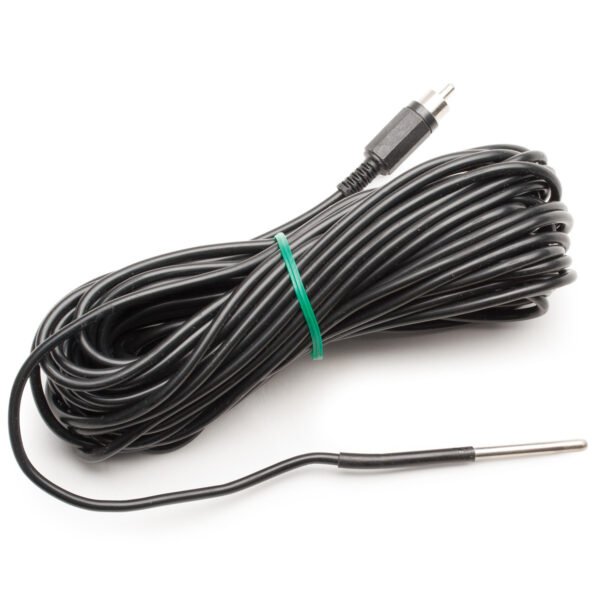

Wire PTC Thermistor Probe

SKU : c0e7f6f74d08

The HI765W is a wire thermistor probe designed for use with a thermistor thermometer. The wire extends 1 m (3.3′) from the probe to the connector with the meter; the HI765W does not incorporate a handle. The flexible wire probe allows users to obtain highly accurate readings of hard to reach surfaces. The HI765 series of thermistor probes is pre-calibrated with a maximum error of ±0.2°C (±0.4°F), so recalibration isn’t necessary when probes are interchanged.

Pre-calibrated probe
PTC thermistor
AISI 316 stainless steel

Info penawaran harga dan pemesanan hubungi:

SKU c0e7f6f74d08 Kategori : Electrodes

Description

The Wire Thermistor Probe – HI765W is designed to measure the temperature of hard to reach surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI765W wire construction offers an 8-second response for a temperature reading for samples up to 150°C (302°F).

Specification Name	Detail
SKU	HI765W
Reference	PTC Thermistor
Accuracy (@25?C/77?F)	±0.2°C (±0.4°F)
Recommended Operating Temperature	-50 to 150°C (-58 to 302°F)
Response Time (90% of final value)	8 seconds
Body Length	L 100 mm x dia 3 mm (3.9″ x 0.12″)
Temperature Sensor	yes
Body Material	AISI 316 stainless steel
Cable	PVC/straight; 10 m (32.8′)
Connection	RCA
