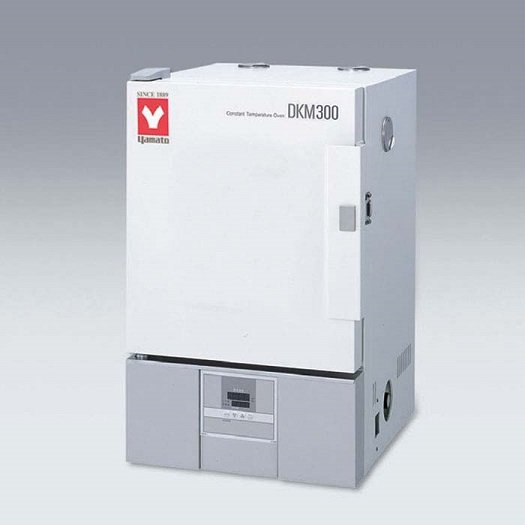

Yamato DKM Forced Convection Economy Oven 27L 115V
Yamato Scientific DKM300C / Thomas 1171R05
| Yamato DKM Series Basic & Economical Forced Convection Ovens Standard forced convection constant temperature ovens with simple operation functions Performance and functions
Safety features
|
| Specifications | |||
| Model | DKM300C DKM310C | DKM400C DKM410C | DKM600C DKM610C |
| Circulation Method | Forced air circulation | ||
| Operating Temperature Range | Room temp. +10~260°C | ||
| Temp. Control Accuracy | ±1°C (at 210°C) | ||
| Temp. Distribution Accuracy | ±2.5°C (at 210°C) | ||
| Max. Temp. Reaching Time | ~90min (at room temp. +10°C~260°C) | ||
| Interior Material | Stainless Steel | ||
| Exterior Material | Cold rolled steel plate with melamine resin baking finish | ||
| Heat Insulating Material | Glass wool | ||
| Heater | SUS pipe heater / 0.8kW | SUS pipe heater / 1.2kW | SUS pipe heater / 1.34kW |
| Fan Type / Motor | Scirocco fan / Condenser type motor 10W | ||
| Cable Port | 30 mm l.D.×1 pc. (right side) | ||
| Exhaust Port | 30 mm l.D.×2 pcs. (the top) | ||
| Temp. Controller | PlD control by microprocessor | ||
| Temp. Setting Method | Operation menu key and digital setting by / key | ||
| Temp Display Method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED | ||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function) | ||
| Operation Functions | Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop | ||
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory | ||
| Heater Circuit Control | SSR control | ||
| Sensor | K-thermocouple | ||
| Safety Device | Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention. | ||
| Internal Dimensions W×D×H | 300×300×300mm | 450×450×450mm | 600×500×500mm |
| External Dimensions W×D×H | 410×451×670mm | 560×601×820mm | 710×651×870mm |
| Internal Capacity | 27L | 90L | 150L |
| Shelf Plate With Standard Load | 15kg/piece | ||
| Shelf Rest Step Number | 6 steps | 9 steps | 12 steps |
| Shelf Rest Pitch | 35mm | ||
| Power Source 50/60Hz | AC115V 7.5A (with plug) AC220V 4.5A (no plug, round terminal) | AC115V 11A (with plug) AC220V 6.5A (no plug, round terminal) | AC115V 12A (with plug) AC220V 7A (no plug, round terminal) |
| Weight | ~35kg | ~50kg | ~65kg |
| Shelf Plate / Bracket | Stainless steel 2 pcs. / 4 pcs. | ||
| Catalog Number | Description | Voltage |
| DKM300C * | Forced Convection Oven Economy 27L | 115V |
| Forced Convection Oven Economy 27L | 220V | |
| Forced Convection Oven Economy 90L | 115V | |
| Forced Convection Oven Economy 90L | 220V | |
| Forced Convection Oven Economy 150L | 115V | |
| Forced Convection Oven Economy 150L | 220V |
