Yamato DKN Programmable Forced Convection Oven 27L 115V
Yamato Scientific DKN302C / VWR 75846-340 / Thomas 1171R11 / Daigger EF29254

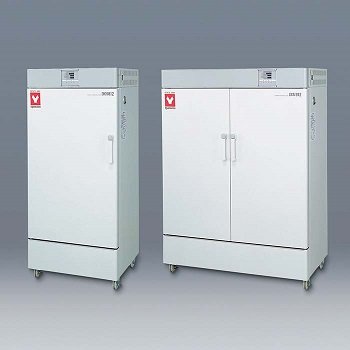

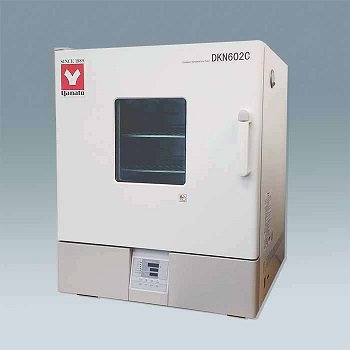

| Yamato DKN Series Standard Programmable Forced Convection Ovens Yamato’s Bestseller! Programmable forced convection constant temperature ovens with extended functions and safety features. Performance and functions
Safety features
|
| Specifications | |||||
| Models | DKN302C DKN312C |
DKN402C DKN412C |
DKN602C DKN612C |
DKN812C | DKN912C |
| Circulation Method | Forced air circulation | Room temp. +10°C~210°C | |||
| Operating Temp. Range | Room temp. +10°C~260°C | ||||
| Temp. Adjustment Accuracy | ±1°C (at 210°C) | ||||
| Temp. Distribution Accuracy | ±2.5°C (at 210°C) | ||||
| Max. Temp. Reaching Time | ~90 min. | ~90 min. | ~90 min. | ~60 min. | ~60 min. |
| Interior/Exterior Material | Stainless steel / Cold rolled steel plate with melamine resin baking finish | ||||
| Heat Insulating Material | Glass wool | ||||
| Heater | SUS pipe heater/0.8kW | SUS pipe heater/1.2kW | SUS pipe heater/1.5kW | SUS pipe heater/1.5kWx2 | SUS pipe heater/1.8kWx2 |
| Fan Type / Fan Motor | Scirocco fan, Condenser type motor 10W | 1pc / 30W | 2pc / 10W | ||
| Cable Hole | 30mm I.D. (on the right side) 1pc. | ||||
| Exhaust Port | 30mm I.D. x 2 (on top) | 30mm I.D.×2 (the back) | |||
| Observation Window | 180×180mm Chemical strengthening glassx3 | 250 x 280mm Chemical strengthening glassx3 | None | ||
| Temp. Controller | 3 patterns program controller, PID control by microprocessor | ||||
| Temp. Setting Method | Digital setting by / key | ||||
| Temp. Display | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED | ||||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function | ||||
| Operation Function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop | ||||
| Program Mode | Program operation : 3 patterns, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function | ||||
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory | ||||
| Heater Circuit Control | SSR control | ||||
| Sensor | K-thermocouple | ||||
| Safety Device | Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection | ||||
| Internal Dimensions W×D×H | 300×300×300 mm | 450×450×450 mm | 600×500×500 mm | 600×500×1000 mm | 1070×500×1000 mm |
| External Dimensions W×D×H | 410×451×670 mm | 560×601×820 mm | 710×651×870 mm | 710×651×1608 mm | 1180×651×1616 mm |
| Internal Capacity | 27L | 90L | 150L | 300L | 535L |
| Shelf Plate With Standard Load | ~15kg/piece | ||||
| Shelf Rest Step Number / Shelf Rest Pitch | 9 steps / 30mm | 11 steps / 30mm | 13 steps / 30mm | 29 steps / 30mm | 29 steps x 2 / 30mm |
| Power Source 50/60Hz | 115V 7.5A (with plug) 220V 4.5A (no plug, round terminal) |
115V 11A (with plug) 220V 6.5A (no plug, round terminal) |
115V 12.5A (with plug) 220V 7A (no plug, round terminal) |
220V 15A (no plug, round terminal) | 220V 18A (no plug, round terminal) |
| Weight | ~35kg | ~50Kg | ~65kg | ~110kg | ~190kg |
| Shelf Plate | Stainless steel, 1pc on the bottom screwed (DKN912C, 2 pcs) | ||||
| Shelf Plate / Bracket | 2 pcs. / 4 pcs. | 2 pcs. / 4 pcs. | 2 pcs. / 4 pcs. | 4 pcs. / 8 pcs. | 8 pcs. / 16 pcs. |
| Catalog Number | Description | Voltage |
| DKN302C * | Forced Convection Oven Programmable 27L | 115V |
| Forced Convection Oven Programmable 27L | 220V | |
| Forced Convection Oven Programmable 90L | 115V | |
| Forced Convection Oven Programmable 90L | 220V | |
| Forced Convection Oven Programmable 150L | 115V | |
| Forced Convection Oven Programmable 150L | 220V | |
| Forced Convection Oven Programmable 300L | 220V | |
| Forced Convection Oven Programmable 535L | 220V |
