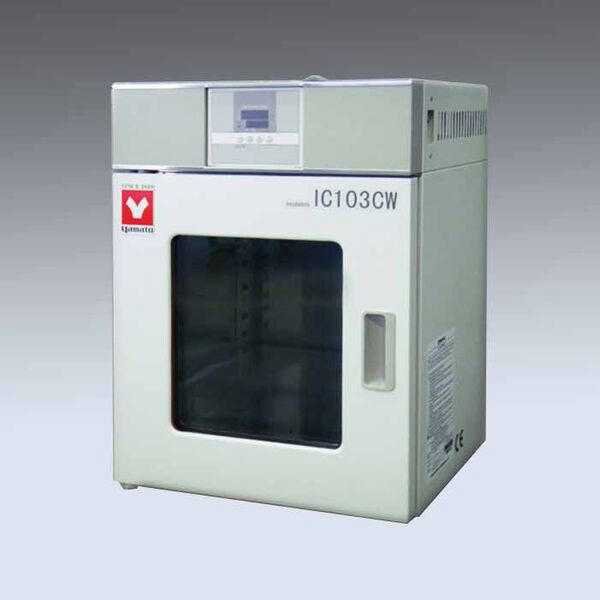

Yamato IC Natural Convection Benchtop Incubator 37L 115V
Yamato Scientific IC103C / Fisher 50-189-8079 / VWR 75846-702 / Thomas 1196N73

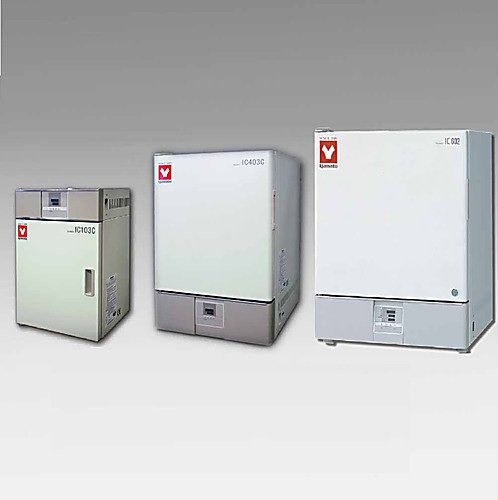

| Yamato IC Series Natural Convection Incubators Economical general purpose natural convection incubators Operation and functions
|
| Specifications | |||||
| Models | IC103C IC113C | IC403C IC413C | IC603C IC613C | IC803C IC813C | IC903C IC913C |
| System | Natural convection | ||||
| Operating Temp. Range | Room temp. +5~80°C | ||||
| Temp. Control Accuracy | ±0.5°C (at 37°C) | ||||
| Temp. Distribution Accuracy | ±1.0°C | ||||
| Interior | Stainless steel | ||||
| Exterior | Cold rolled steel plate with melamine resin baking finish | ||||
| Heat Insulator | Glass fiber | ||||
| Heater | Stainless steel heating pipe | Iron-chrome wire heater | |||
| 0.2kW | 0.3kW | 0.4kW | 0.7kW | 2.2kW | |
| Temperature Controller | PID control by microprocessor | ||||
| Temperature Setting System | Operation menu key and digital setting by keys, digital display | ||||
| Temperature Display | Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED | ||||
| Timer | 1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function) | ||||
| Operation Function | Fixed temperature, Auto start, Auto stop, Quick Auto stop | ||||
| Additional Function | Calibration off-set, Key-lock, Power outage compensation | ||||
| Safety Device | Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention | ||||
| Heater Control Circuit | SSR drive system | ||||
| Sensor | K-thermocouple | ||||
| Internal Dimensions WxDxH | 350x300x360mm | 450×480×450mm | 600x530x500mm | 600×530×1000mm | 1070x530x1000mm |
| External Dimensions WxDxH | 430x397x606mm | 560×606×820mm | 710x656x870mm | 710×656×1619mm | 1180x656x1619mm |
| Internal Capacity | 37L | 97L | 159L | 318L | 567L |
| Inner Door | None | Reinforced glass door x 1 | Reinforced glass door x 2 | ||
| Shelf Load Capacity | ~15 kg/pc | ||||
| Shelf Rest Step Number | 8 steps | 9 steps | 12 steps | 29 steps | 29 steps x 2 |
| Power Supply (50/60 Hz) | AC115V 1.8A (with plug) AC220V 1A (no plug, round terminal) | AC115V 4.5A (with plug) AC220V 2A (no plug, round terminal) | AC115V 6A (with plug) AC220V 2.5A (no plug, round terminal) | AC115V 10A (with plug) AC220V 4.5A (no plug, round terminal) | AC115V 13A (with plug) AC220V 6.5A (no plug, round terminal) |
| Weight | ~17 kg | ~45 kg | ~65 kg | ~102 kg | ~166kg |
| Included Accessories | Shelf and brackets (stainless steel) | ||||
| 2 pcs. / 4pcs. | 4 pcs. / 8pcs. | 8 pcs. / 16pcs. | |||
| Optional Accessories | Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), External communication terminal (RS485), Temp. output terminal, Time-up output terminal for alarm device | ||||
| Catalog Number | Description | Voltage |
| IC103C * | General Purpose Benchtop Incubator 37L | 115V |
| Incubator with Window | ||
| General Purpose Benchtop Incubator 37L with Window | 115V | |
| General Purpose Benchtop Incubator 37L with Window | 220V | |
| General Purpose Incubator 97L with Window | 115V | |
| General Purpose Incubator 97L with Window | 220V | |
| General Purpose Incubator 159L with Window | 115V | |
| General Purpose Incubator 159L with Window | 220V | |
| General Purpose Incubator 318L with Window | 115V | |
| General Purpose Incubator 318L with Window | 220V | |
| General Purpose Incubator 567L with Window | 115V | |
| General Purpose Incubator 567L with Window | 220V | |
| Incubator with Communication Port | ||
| General Purpose Incubator 97L with Communication Port | 115V | |
| General Purpose Incubator 97L with Communication Port | 220V | |
| General Purpose Incubator 159L with Communication Port | 115V | |
| General Purpose Incubator 159L with Communication Port | 220V | |
| General Purpose Incubator 318L with Communication Port | 115V | |
| General Purpose Incubator 318L with Communication Port | 220V | |
| General Purpose Incubator 567L with Communication Port | 115V | |
| General Purpose Incubator 567L with Communication Port | 220V | |
