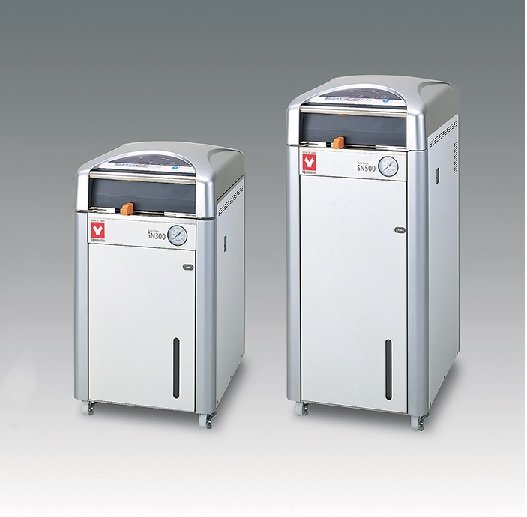

Yamato SN Laboratory Sterilizer without Dryer 32L 100-120V
Yamato Scientific SN300C / ColeParmer EW-10773-02 / Daigger EF5550B / Fisher 50-189-8064 / VWR 75846-576 / Thomas 1196P18
Yamato SN Series Standard Autoclaves & Steam Sterilizers Yamato Scientific’s SN Series Steam Sterilizers & Autoclaves are designed for high performance and easy operation. Each model features easy top-loading and sample handling. We provide a 32L and 47L sizes, making it easy for you to find the best top-loading steam sterilizer that suits your space. Yamato’s SN high-pressure autoclaves are built with a dedicated top-notch cooling fan for faster cool down times. It is also topped off with an intuitive timer & pre-heating program, which allows you to heat up the chamber before sterilization to reduce the duration of cycle times & formation of condensation. Combined, these features provide you with more enhanced drying results & a more efficient use of your time. The SN series top-loading autoclaves are also engineered with safety features such as lid interlock mechanism, drain bottle unset alarm, memory malfunction, and self diagnostic functions. The Yamato SN series standard steam sterilizers are top-of-the-class systems built to deliver reliable performance like no other. Check out the top-loading SN300C steam sterilizer, SN310C steam sterilizer, SN500C steam sterilizer & SN510C steam sterilizer here at Yamato. Operation and functions
Safety Features
|
Specifications | ||
Models | SN300C | SN500C |
SN310C | SN510C | |
System | Automatic high-pressure steam sterilization | |
Operating Temperature Range | 45~135°C | |
Max. Working Pressure | 0.255MPa | |
Ambient Temperature | 5~35°C | |
Lid | Manual upward opening with an interlock for safety | |
Heater | 100V, 800W x 2 units | 100V, 950W x 2 units |
Exhaust Valve | One exhaust valve and one slow release valve | |
Connection Ports For Optional Accessories | Total 3 ports. Female thread for sample temp. sensor (1/4″ ), Female thread for chamber temp. sensor (1/4″ ), Female thread pressure sensor (branching from the solenoid valve tubing) | |
Cooling Fan | Axial fan motor | |
Temp. Controller | PID control by microprocessor | |
Temp. Display / Setting | Digital display / digital setting by keys | |
Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. | |
Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course | |
Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | |
Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) | |
External Dimensions (WxDxH) | 460 x 590 x 848 mm | 460 x 590 x 1068 mm |
Internal Dimensions Of Chamber | ø300 x D445 mm | ø300 x D665 mm |
Internal Capacity | 32L | 47L |
Weight | ~75kg | ~85kg |
Power Source | AC100~120V (15~12.5A) (no plug, round terminal) AC200~240V (10~8.5A) (no plug, round terminal) | AC100~120V (23.5~19.5A) (no plug, round terminal) AC200~240V (12~10A) (no plug, round terminal) |
Included Accessories | 2 pcs. stainless steel mesh basket (ø262 x D204mm), OSM70 | 3 pcs. stainless steel mesh basket (ø262 x D204mm), OSM70 |
Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1 |
Catalog Number | Description | Voltage |
SN300C * | Yamato SN Laboratory Sterilizer without Dryer 32L | 100-120V |
Yamato SN Laboratory Sterilizer without Dryer 32L | 200-240V | |
Yamato SN Laboratory Sterilizer without Dryer 47L | 100-120V | |
Yamato SN Laboratory Sterilizer without Dryer 47L | 200-240V |
