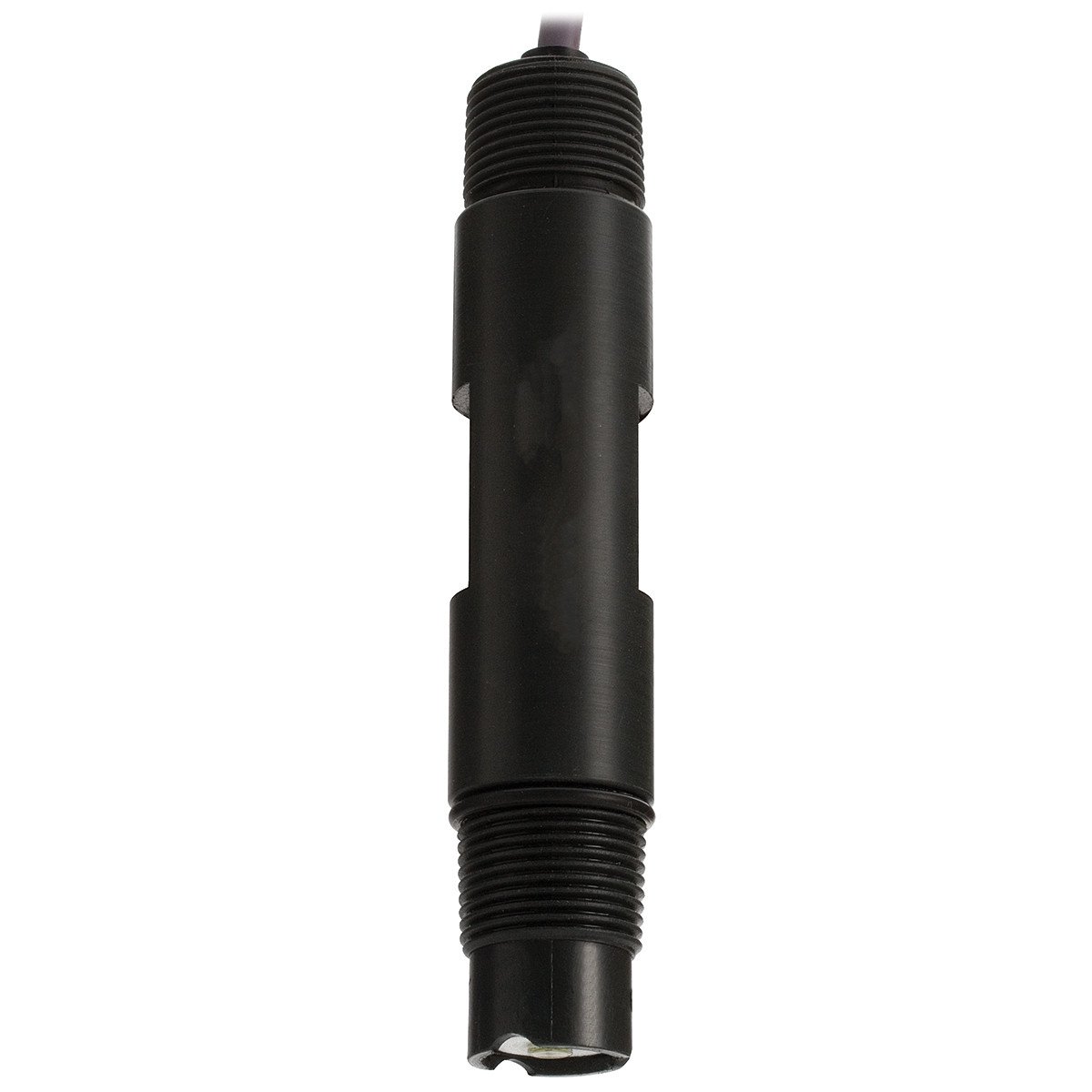

Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Hydrofluoric resistant glass formulation
HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
| Specification Name | Detail |
|---|---|
| SKU | HI6100205 |
| Range | pH: 0-10 |
| Tip Shape | Flat |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | HF (-5 to 60°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC |
| Cable | 5m |
| Warranty | 6 months |
