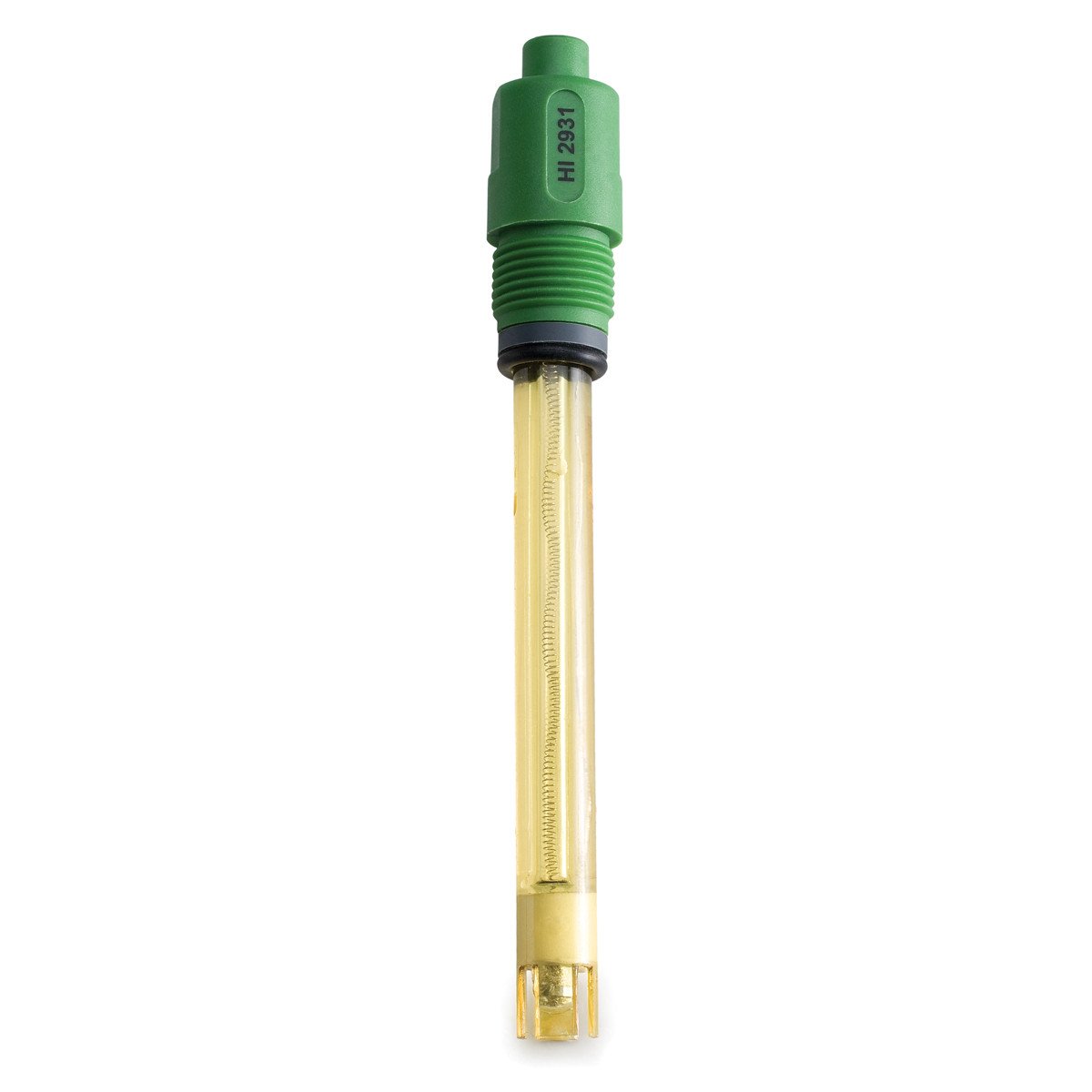

Amplified ORP electrode
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
Platinum sensor
Provides the best response over a wide range of applications.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Incorporated amplifier
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
AmpHel® replaceable battery
No longer necessary to throw away an electrode when the battery is exhausted for longer electrode life.
| Specification Name | Detail |
|---|---|
| SKU | HI2931B/5 |
| Tip Shape | Platinum |
| Body | PEI |
| Junction | PTFE |
| Glass Type | (-5 to 80°C) |
| Electrolyte | Gel |
| Matching Pin | No |
| Amplifier | Yes |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | BNC |
| Cable | 5m |
| Length | 148.5mm |
| Warranty | 6 months |
