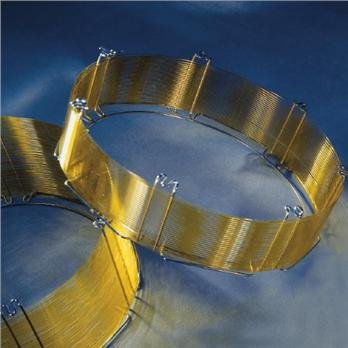

100% Dimethyl Polysiloxane
- Classic dimethyl polysiloxane technology with high temperature cross-linking
- Excellent general purpose GC column
- Low Bleed
- Non-polar
- Suitable for all routine analyses
Application areas: suitable for analysis of hydrocarbons, aromatics, pesticides, phenol, herbicides, amines
Operating Temperature:
- 0.1-1.0µm film thickness: -60° to 340/360°C
- 1.5-3.0µm film thickness: -60° to 300/320°C
- 4.0-5.0µm film thickness: -60° to 280/300°C
Suitable replacement for: DB-1, DB-Petro, HP-1, HP-1MS, Rtx-1, Ultra-1, SPB-1, SPB-1 Sulfur, Petrocol DH, CP-Sil 5CB, VB-1, ZB-1, VF-1ms
| Replacement for: | DB-1, DB-Petro, HP-1, HP-1MS, Rtx-1, Ultra-1, SPB-1, SPB-1 Sulfur, Petrocol DH, CP-SiI 5CB |
| Application Areas: | General purpose, hydrocarbons, aromatics, pesticides, phenol, herbicides, amines |
| Operating Temperatures: | 0.1µm -1.0µm film: -60°C to 340/350°C; >1.0µm film: -60°C to 280/300°C |
| Thomas No. | Film Thickness(µm) | ID x Length |
| 2703A01 | 0.25 | 0.22 mm x 15 m |
| 2703A03 | 0.25 | 0.2 2 mm x 30 m |
| 2703A05 | 0.25 | 0.22 mm x 60 m |
| 2703A09 | 0.25 | 0.25 mm x 15 m |
| 2703A11 | 0.25 | 0.25 mm x 30 m |
| 2703A13 | 0.25 | 0.25 mm x 60 m |
| 2703A15 | 0.5 | 0.25 mm x 30 m |
| 2703A17 | 0.5 | 0.25 mm x 60 m |
| 2703A19 | 0.5 | 0.25 mm x 100 m |
| 2703A21 | 1.0 | 0.25 mm x 30 m |
| 2703A23 | 1.0 | 0.25 mm x 60 m |
| 2703A25 | 0.25 | 0.32 mm x 15 m |
| 2703A27 | 0.25 | 0.32 mm x 25 m |
| 2703A29 | 0.25 | 0.32 mm x 30 m |
| 2703A31 | 0.25 | 0.32 mm x 60 m |
| 2703A33 | 0.5 | 0.32 mm x 25 m |
| 2703A35 | 0.5 | 0.32 mm x 30 m |
| 2703A37 | 0.5 | 0.32 mm x 60 m |
| 2703A39 | 1.0 | 0.32 mm x 30 m |
| 2703A41 | 1.0 | 0.32 mm x 60 m |
| 2703A43 | 1.5 | 0.32 mm x 30 m |
| 2703A45 | 3.0 | 0.32 mm x 30 m |
| 2703A47 | 4.0 | 0.32 mm x 30 m |
| 2703A49 | 5.0 | 0.32 mm x 60 m |
| 2703A53 | 0.5 | 0.53 mm x 15 m |
| 2703A55 | 0.5 | 0.53 mm x 30 m |
| 2703A57 | 0.5 | 0.53 mm x 60 m |
| 2703A59 | 1.0 | 0.53 mm x 15 m |
| 2703A61 | 1.0 | 0.53 mm x 30 m |
| 2703A63 | 2.6 | 0.53 mm x 30 m |
| 2703A65 | 3.0 | 0.53 mm x 30 m |
| 2703A67 | 3.0 | 0.53 mm x 60 m |
| 2703A71 | 5.0 | 0.53 mm x 30 m |
| 2703A73 | 5.0 | 0.53 mm x 60 m |
| Thomas No | Mfr No | Description |
|---|---|---|
| 1186C66 | 054022 | Capillary Column, BP1, 10m length, 0.10mm ID, 0.1µm |
| 1186C68 | 054040 | Capillary Column, BP1, 12m length, 0.22mm ID, 0.10µm |
| 1186C70 | 054046 | Capillary Column, BP1, 12m length, 0.22mm ID, 0.25µm |
| 1186C75 | 054064 | Capillary Column, BP1, 12m length, 0.32mm ID, 0.5µm |
| 1186C77 | 054070 | Capillary Column, BP1, 12m length, 0.32mm ID, 1µm |
| 1186C81 | 054086 | Capillary Column, BP1, 12m length, 0.53mm ID, 1µm |
| 1186C67 | 054039 | Capillary Column, BP1, 15m length, 0.25mm ID, 0.10µm |
| 2703A09 | 054043 | Capillary Column, BP1, 15m length, 0.25mm ID, 0.25µm |
| 2703A25 | 054061 | Capillary Column, BP1, 15m length, 0.32mm ID, 0.25µm |
| 1186C69 | 054041 | Capillary Column, BP1, 25m length, 0.22mm ID, 0.10µm |
| 1186C71 | 054047 | Capillary Column, BP1, 25m length, 0.22mm ID, 0.25µm |
| 1186C73 | 054053 | Capillary Column, BP1, 25m length, 0.22mm ID, 1µm |
| 2703A27 | 054059 | Capillary Column, BP1, 25m length, 0.32mm ID, 0.25µm |
| 2703A33 | 054065 | Capillary Column, BP1, 25m length, 0.32mm ID, 0.5µm |
| 1186C78 | 054071 | Capillary Column, BP1, 25m length, 0.32mm ID, 1µm |
| 1186C82 | 054087 | Capillary Column, BP1, 25m length, 0.53mm ID, 1µm |
| 1186C83 | 054095 | Capillary Column, BP1, 25m length, 0.53mm ID, 5µm |
| 2703A03 | 054050 | Capillary Column, BP1, 30m length, 0.22mm ID, 0.25µm |
| 2703A11 | 054044 | Capillary Column, BP1, 30m length, 0.25mm ID, 0.25µm |
| 2703A15 | 054820 | Capillary Column, BP1, 30m length, 0.25mm ID, 0.5µm |
| 2703A21 | 054056 | Capillary Column, BP1, 30m length, 0.25mm ID, 1µm |
| 2703A35 | 054068 | Capillary Column, BP1, 30m length, 0.32mm ID, 0.50µm |
| 2703A39 | 054813 | Capillary Column, BP1, 30m length, 0.32mm ID, 1µm |
| 2703A45 | 054073 | Capillary Column, BP1, 30m length, 0.32mm ID, 3µm |
| 2703A55 | 054092 | Capillary Column, BP1, 30m length, 0.53mm ID, 0.5µm |
| 2703A61 | 054090 | Capillary Column, BP1, 30m length, 0.53mm ID, 1µm |
| 2703A65 | 054808 | Capillary Column, BP1, 30m length, 0.53mm ID, 3µm |
| 2703A71 | 054806 | Capillary Column, BP1, 30m length, 0.53mm ID, 5µm |
| 1186C72 | 054048 | Capillary Column, BP1, 50m length, 0.22mm ID, 0.25µm |
| 1186C74 | 054054 | Capillary Column, BP1, 50m length, 0.22mm ID, 1µm |
| 1186C76 | 054066 | Capillary Column, BP1, 50m length, 0.32mm ID, 0.5µm |
| 1186C79 | 054072 | Capillary Column, BP1, 50m length, 0.32mm ID, 1µm |
| 1186C80 | 054082 | Capillary Column, BP1, 50m length, 0.32mm ID, 5µm |
| 1186C84 | 054096 | Capillary Column, BP1, 50m length, 0.53mm ID, 5µm |
| 2703A05 | 054051 | Capillary Column, BP1, 60m length, 0.22mm ID, 0.25µm |
| 2703A13 | 054045 | Capillary Column, BP1, 60m length, 0.25mm ID, 0.25µm |
| 2703A17 | 054812 | Capillary Column, BP1, 60m length, 0.25mm ID, 0.50µm |
| 2703A23 | 054815 | Capillary Column, BP1, 60m length, 0.25mm ID, 1µm |
| 2703A37 | 054069 | Capillary Column, BP1, 60m length, 0.32mm ID, 0.50µm |
| 2703A41 | 054810 | Capillary Column, BP1, 60m length, 0.32mm ID, 1µm |
| 2703A49 | 054085 | Capillary Column, BP1, 60m length, 0.32mm ID, 5µm |
| 2703A67 | 054809 | Capillary Column, BP1, 60m length, 0.53mm ID, 3µm |
| 2703A73 | 054807 | Capillary Column, BP1, 60m length, 0.53mm ID, 5µm |
| 1186D83 | 054950 | Capillary Column, BP1 PONA, 50m length, 0.15mm ID, 0.50µm |
| 2703A19 | 054818 | Capillary Column, BP1 PONA, 100m length, 0.25mm ID, 0.50µm |
