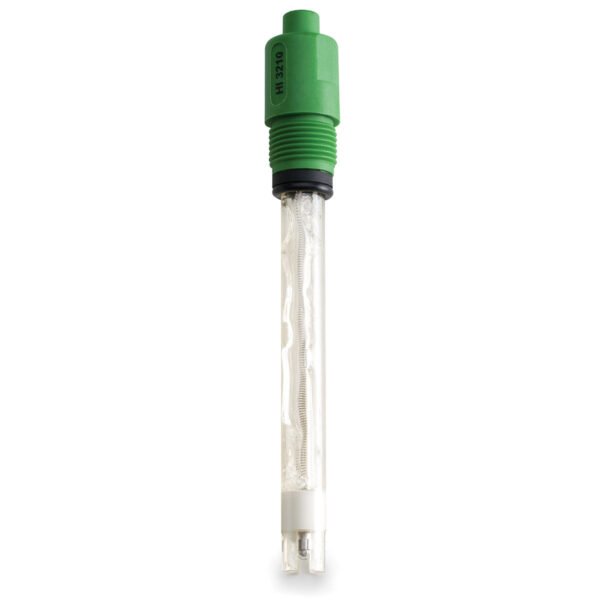

Description
Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Platinum sensor
Provides the best response over a wide range of applications.
Flexible installation
All Hanna pH and ORP electrodes can be mounted with the Hanna inline and submersion assemblies.
| Specification Name | Detail |
|---|---|
| SKU | HI3210B/5 |
| Tip Shape | Platinum |
| Body | PEI |
| Junction | Double, PTFE |
| Glass Type | (0 to 80°C/ 32 to 176°F) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | BNC |
| Cable | 5m |
| Length | 148.5mm |
| Warranty | 6 months |
